PoE injector
JSPOU0P1
$265.00$497.36

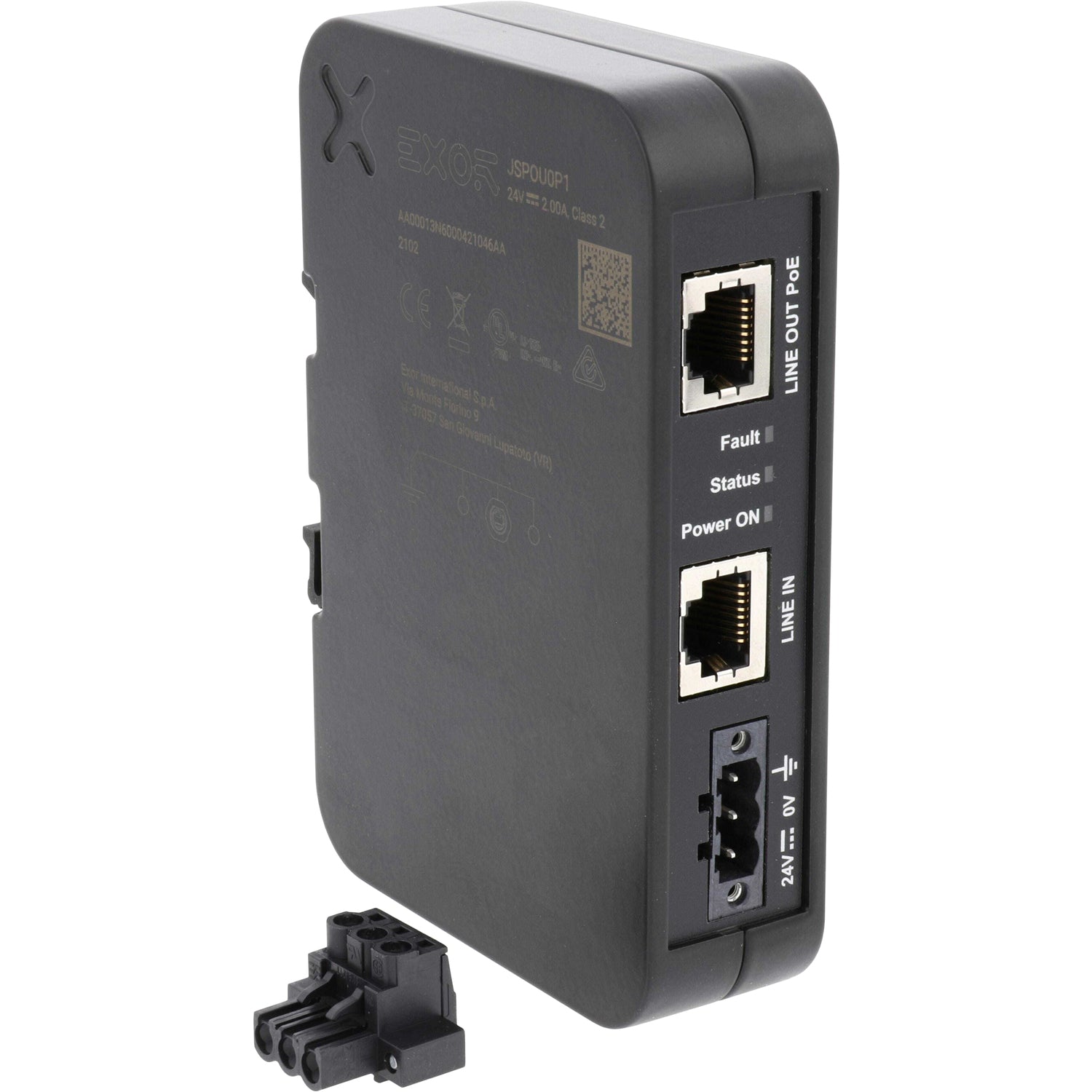

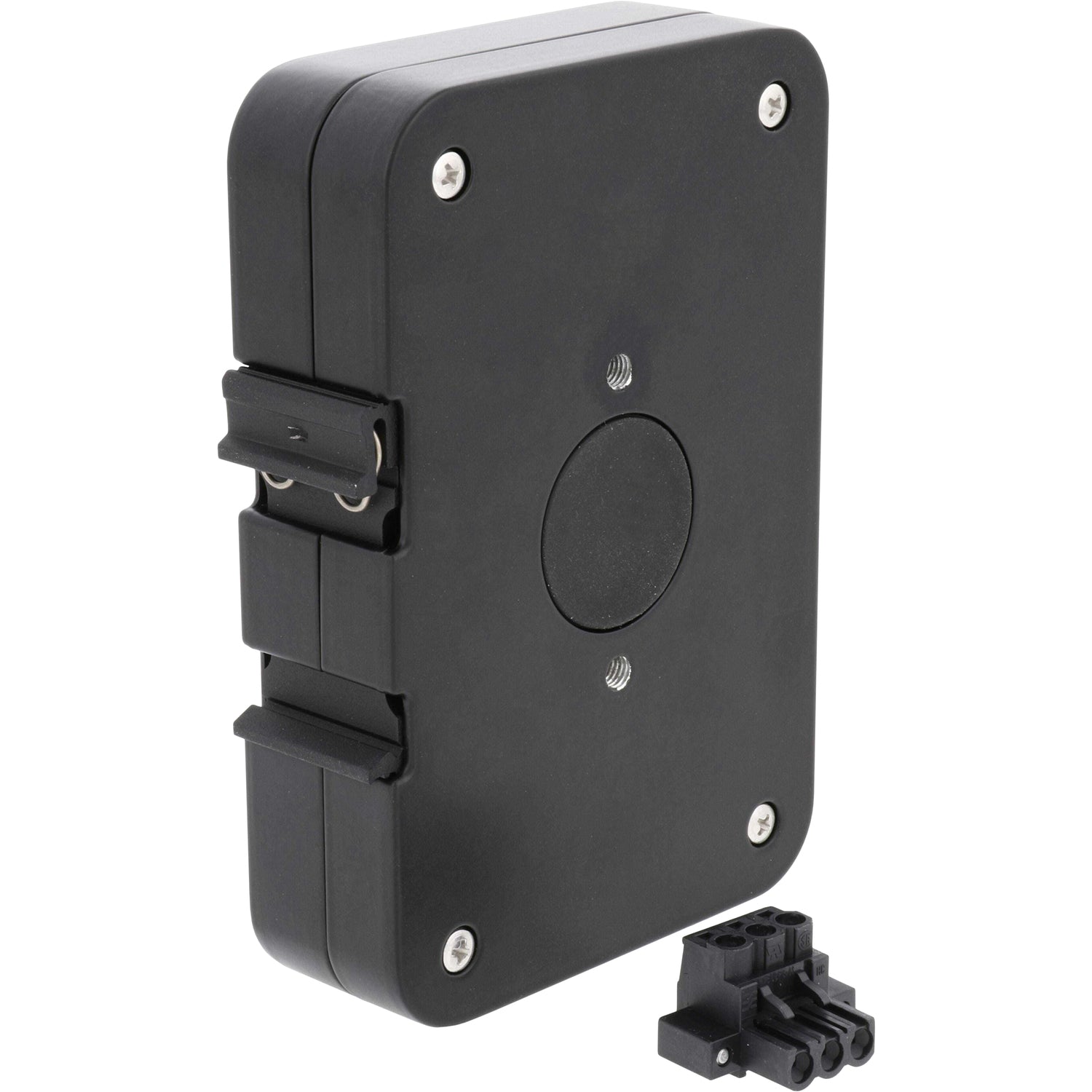

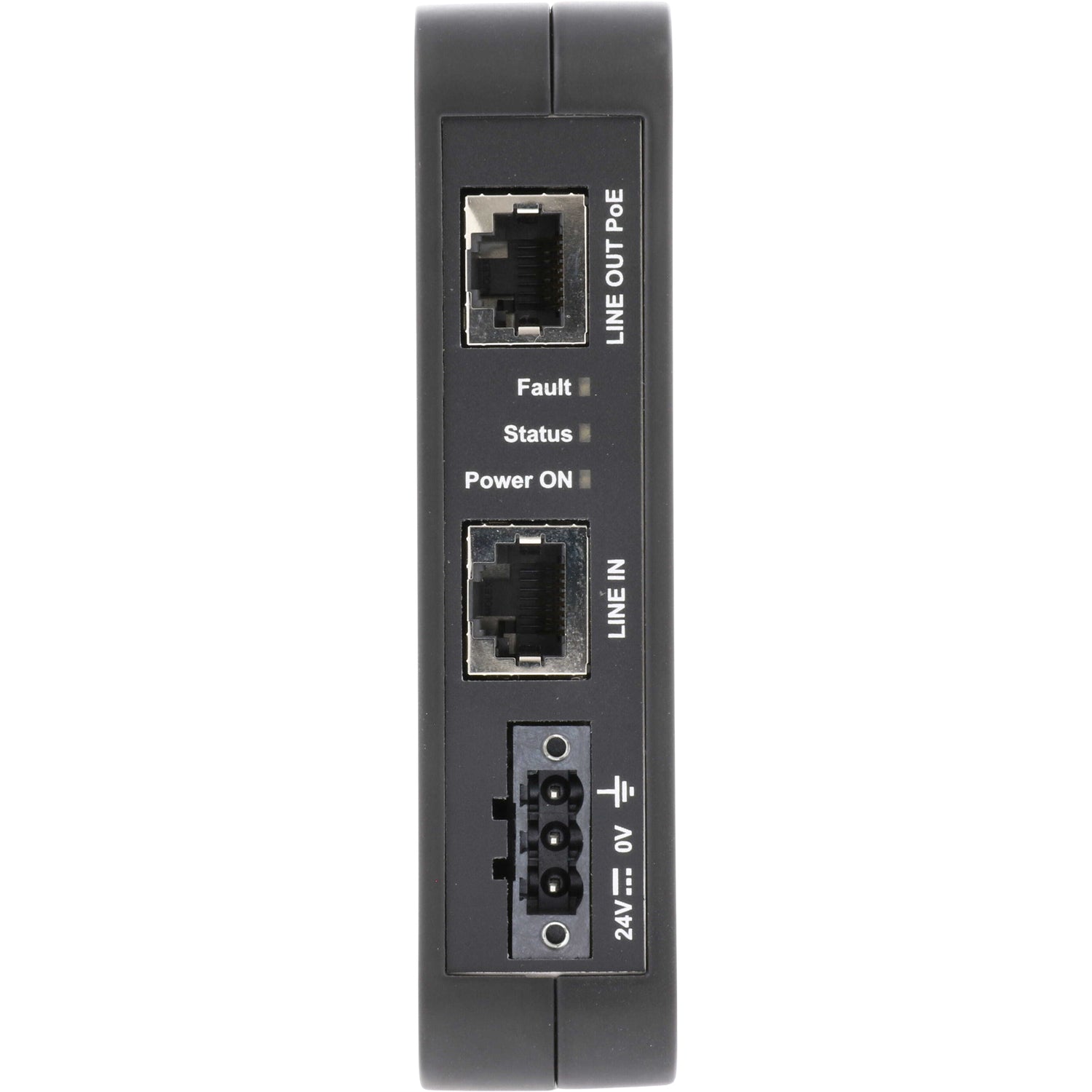

JS-POEDIN01 - Exor - JSmart PoE injector DIN rail mounting ( +JSPOU0P1 )
- Rugged PoE Injector for JSmart HMI Series
- 10/100 Ethernet compatible
- DIN rail mounting
Power-over-Ethernet (PoE) Injector for maximum simplicity of connection using standard CAT5 wiring.
-
JS-POEDIN01 - Exor - JSmart PoE injector DIN rail mounting ( +JSPOU0P1 )
- Rugged PoE Injector for JSmart HMI Series
- 10/100 Ethernet compatible
- DIN rail mounting
Power-over-Ethernet (PoE) Injector for maximum simplicity of connection using standard CAT5 wiring.
Specs:
- Power Supply: +24 Vdc (18-32 Vdc)
- Current Consumption: 2.0 A at 24 Vdc (max.)
- Efficiency: 80% typ
- Over Voltage / Current Protection: Yes
- Short Circuit Protection: Yes
- Reverse Polarity: Yes
- Output Power: 36W max
- DC Output Voltage: +54 Vdc
- Data rates: 10/100
- Ethernet IN port: 10/100
- Ethernet OUT port: 10/100 PoE
- Diagnostic: LEDS 3
- Protection Class: IP20 EN60529
- Faceplate LxH: 80x120 mm
- Depth: D 28 mm
- Depth: D 28 mm
- CE: Emission EN 61000-6-4, Immunity EN 61000-6-2 for installation in industrial environment
- UL: cULus: UL61010-1 / UL61010-2-201
