Gosling Can Present Sensor - Legacy
150411
$35.00$73.84

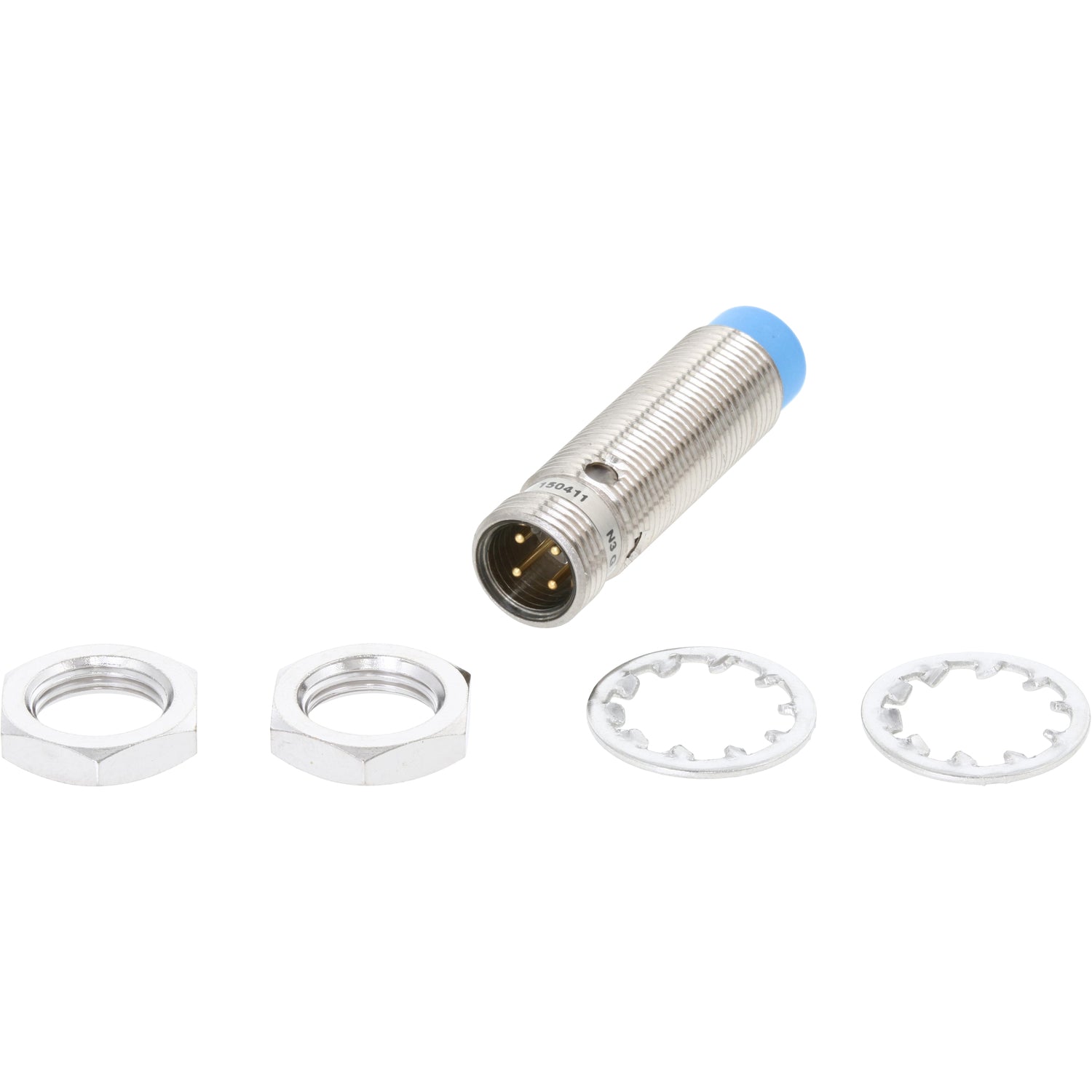

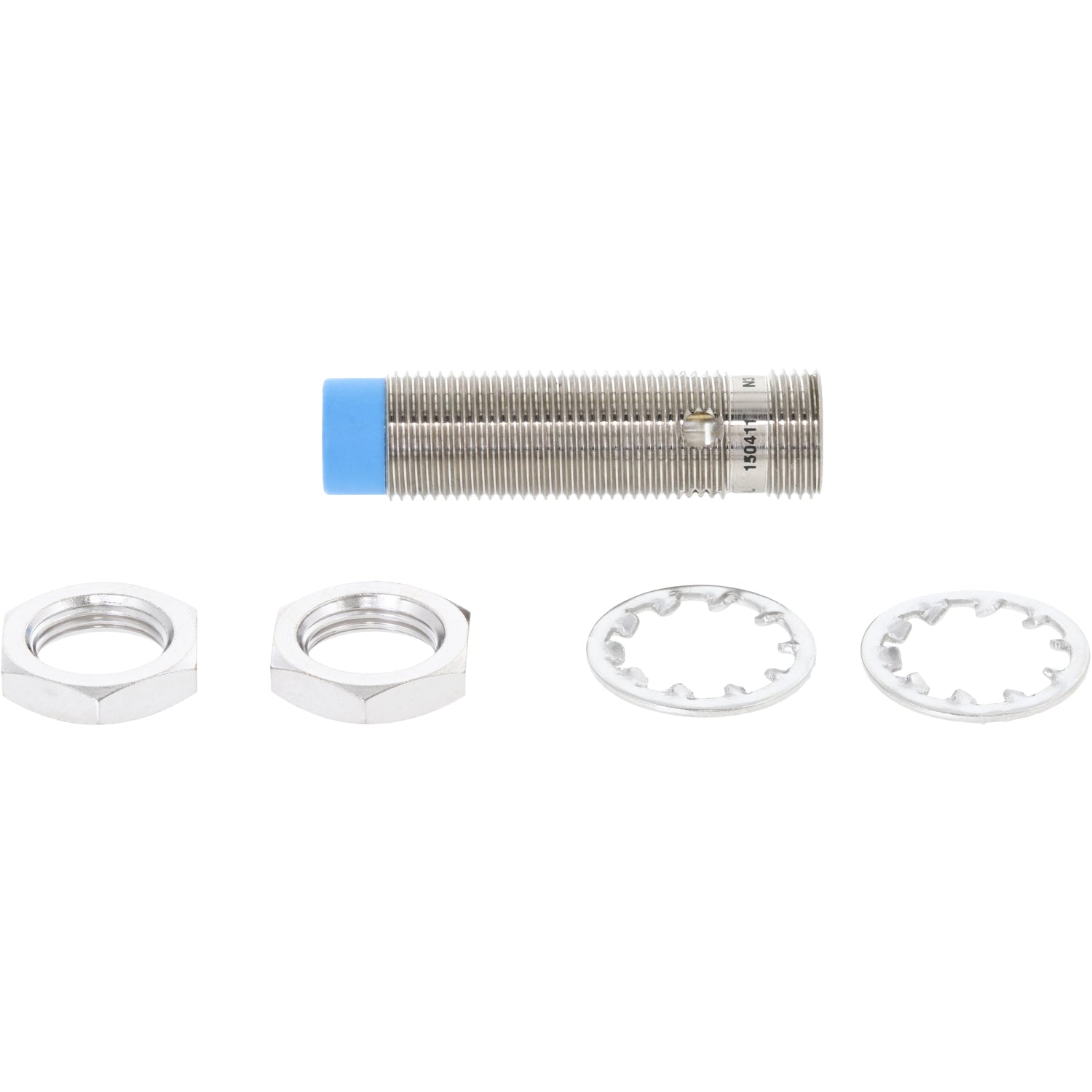

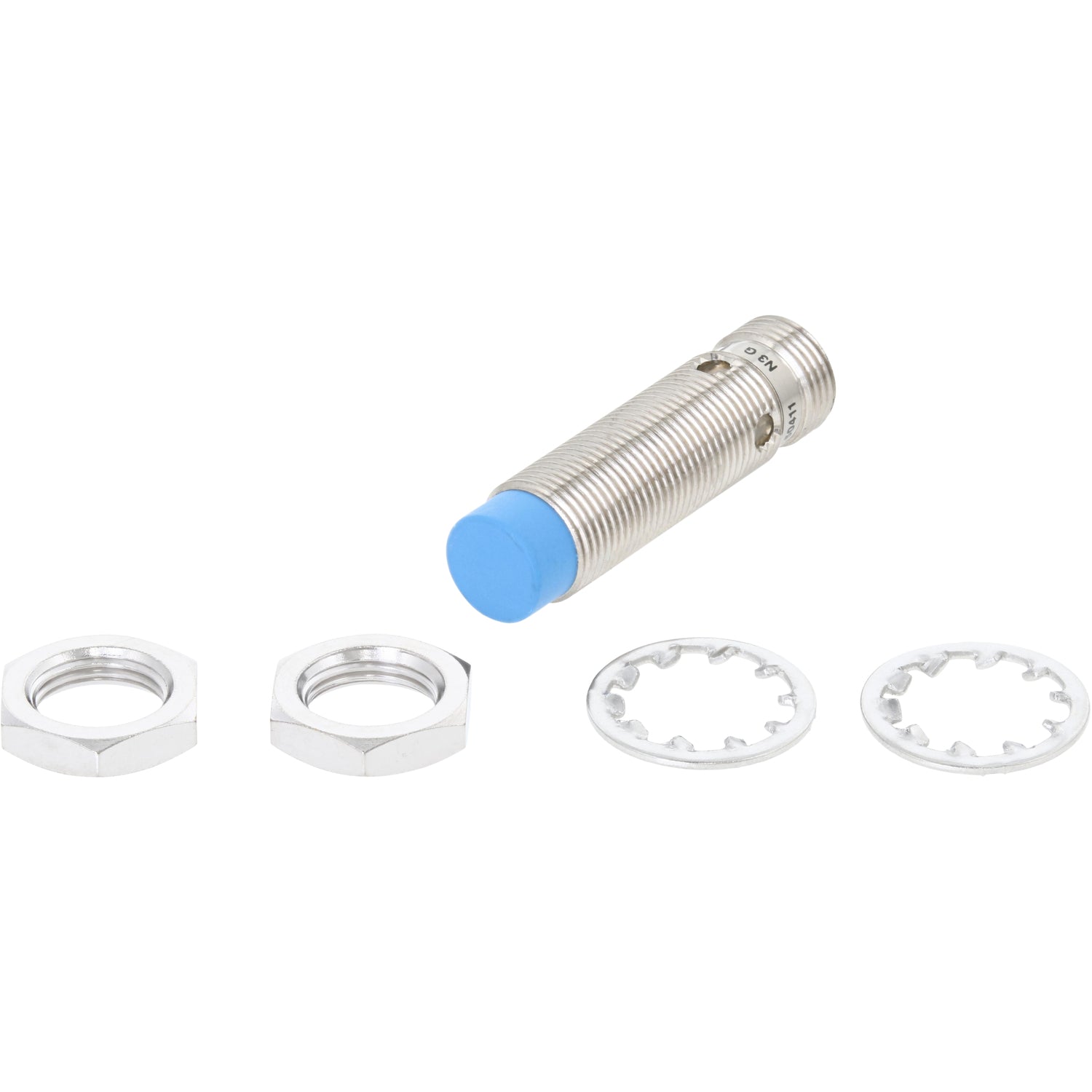

This proximity sensor is used on EARLY model Gosling canning systems and is used to detect the presence of a can at both the CO2 Purge Tube and Fill Head.
It comes with two hex nuts that allow for precision positioning on the mounting brackets.
**Note: This sensor has been upgraded. Click here for the current sensor. Additional parts may be needed. Please reach out to our customer service team for more information.
Features:
- With standard switching distance
- For DC voltage
- Round design
Specs:
- Rated operating distance: 4 mm
- Assured operating distance: 3.24 mm
- Repetition accuracy under constant conditions: 0.2 mm
- Hysteresis: ≤0.36 mm
- Max. switching frequency: 2000 Hz
- Max. output current: 200 mA
- Voltage drop: ≤2 V
- DC operating voltage range: 10 V ... 30 V
- Residual ripple: ± 10%
- Idle current: ≤10 mA
- Electrical connection: 3-pin M12x1 Plug
- Housing material: Brass PBTP Nickel-plated
- Degree of protection: IP65 IP67
