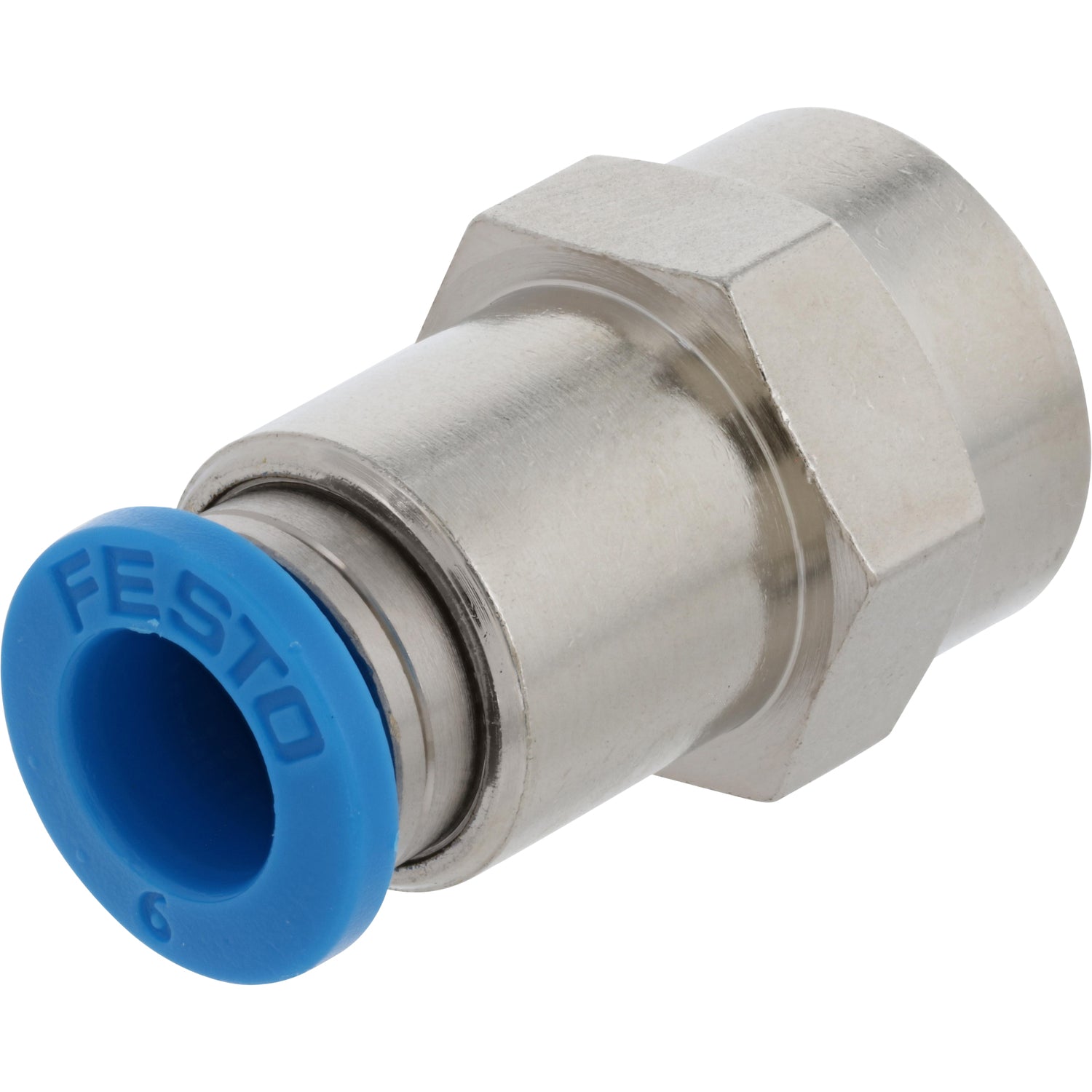

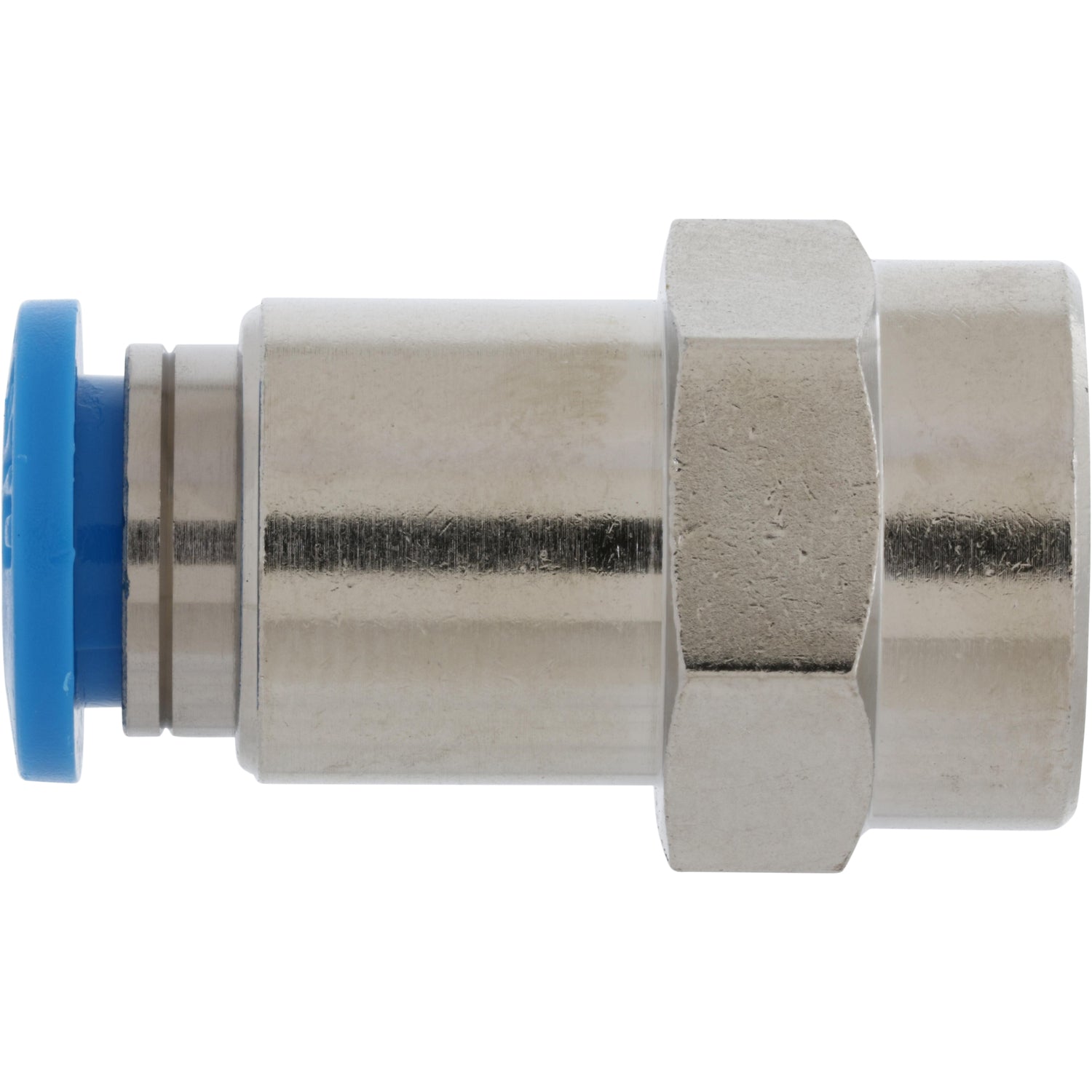

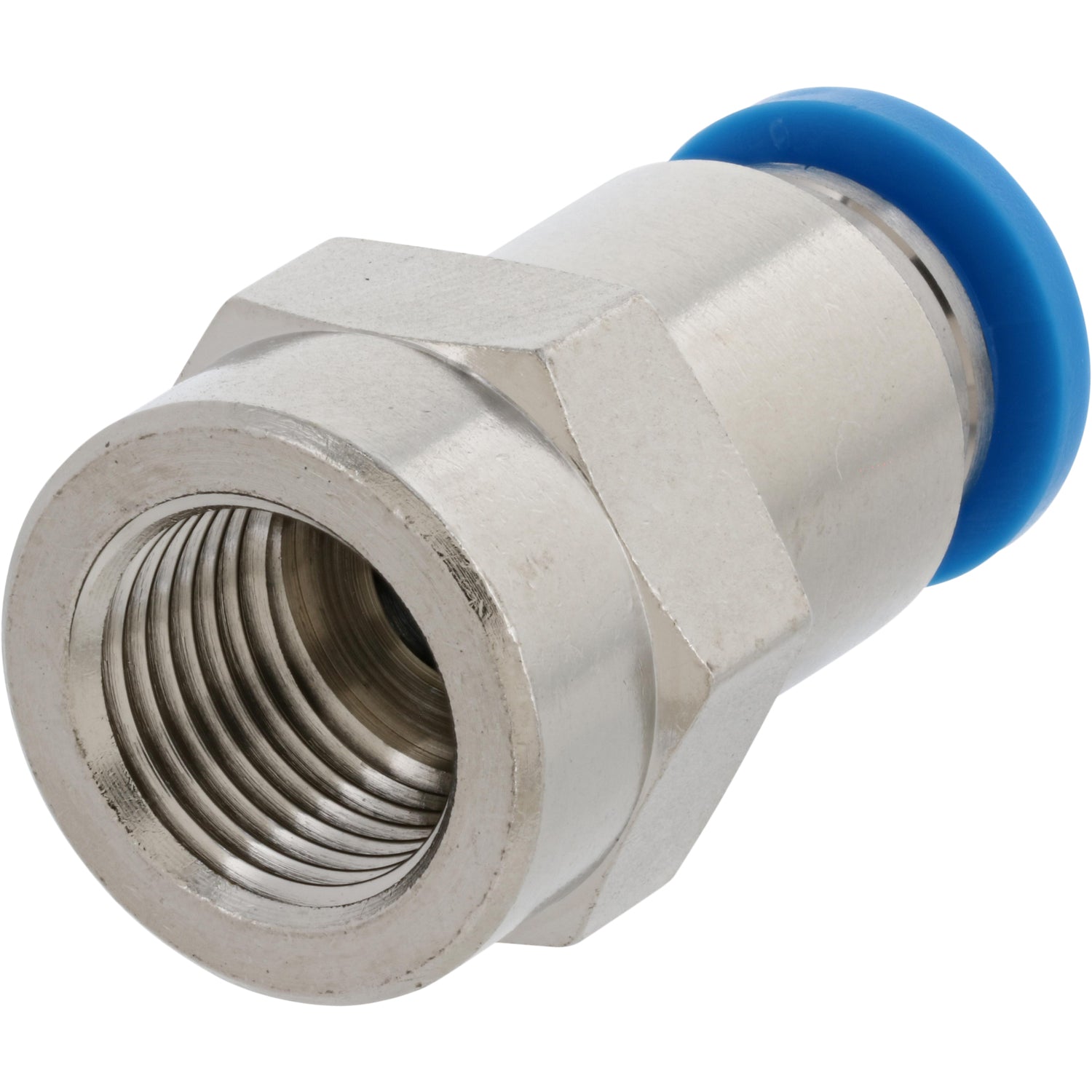

Push in Fitting for AKRT
153023
$6.40
This fitting is used to connect tubing to the Rinse Tunnel Water/Air Control Assembly.
It threads onto the ON/OFF valve.
Specs:
- Design: Straight design
- Structural design: Push-pull principle
- Operating pressure for entire temperature range: -13.775 psi ... 87 psi
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
- Nominal tightening torque: 7 Nm
- Tolerance for nominal tightening torque: ± 20%
- Pneumatic connection 1: Internal thread G1/8
- Pneumatic connection 2: For pneumatic tubing with an outside diameter of 6 mm
- Housing material: Brass, nickel-plated
-
