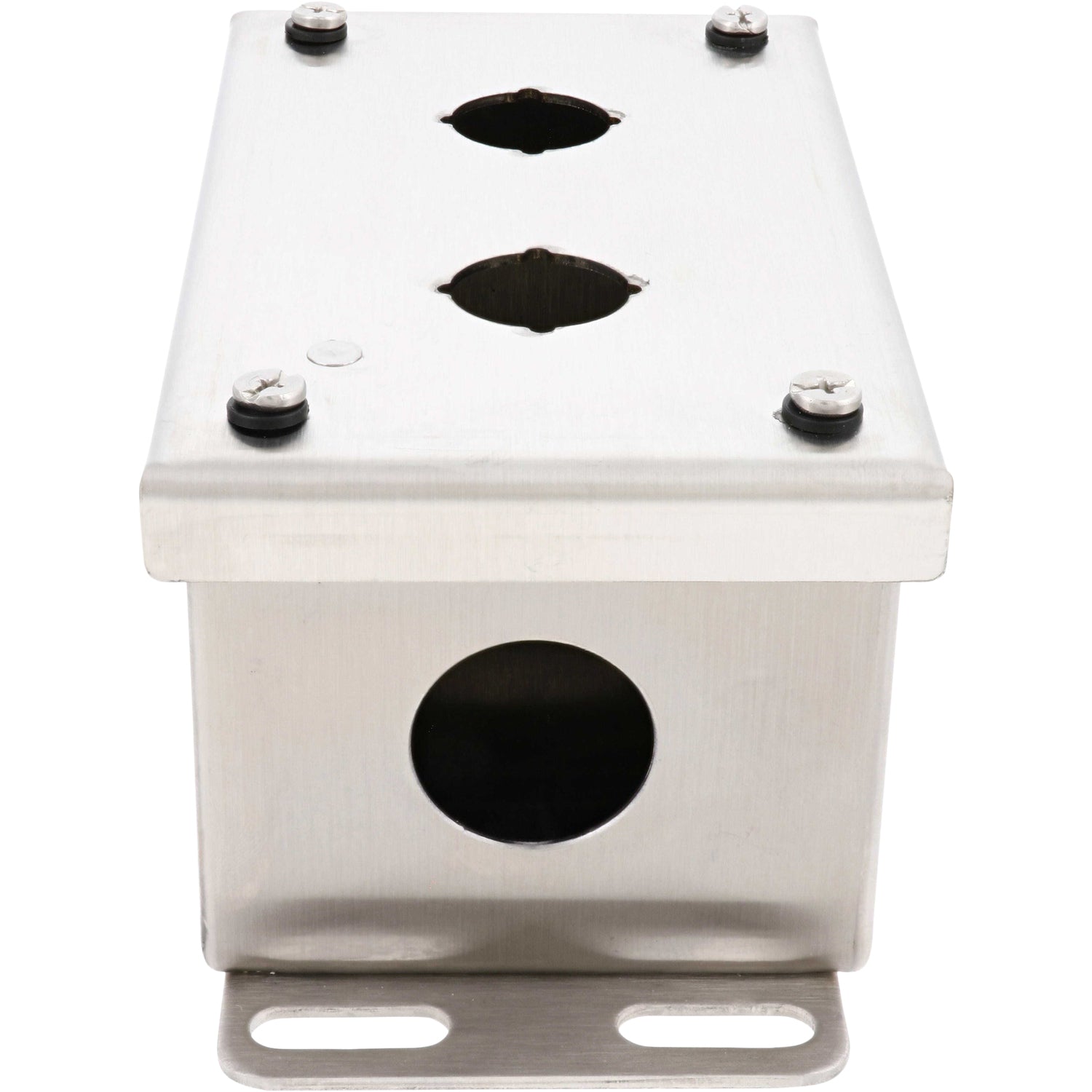

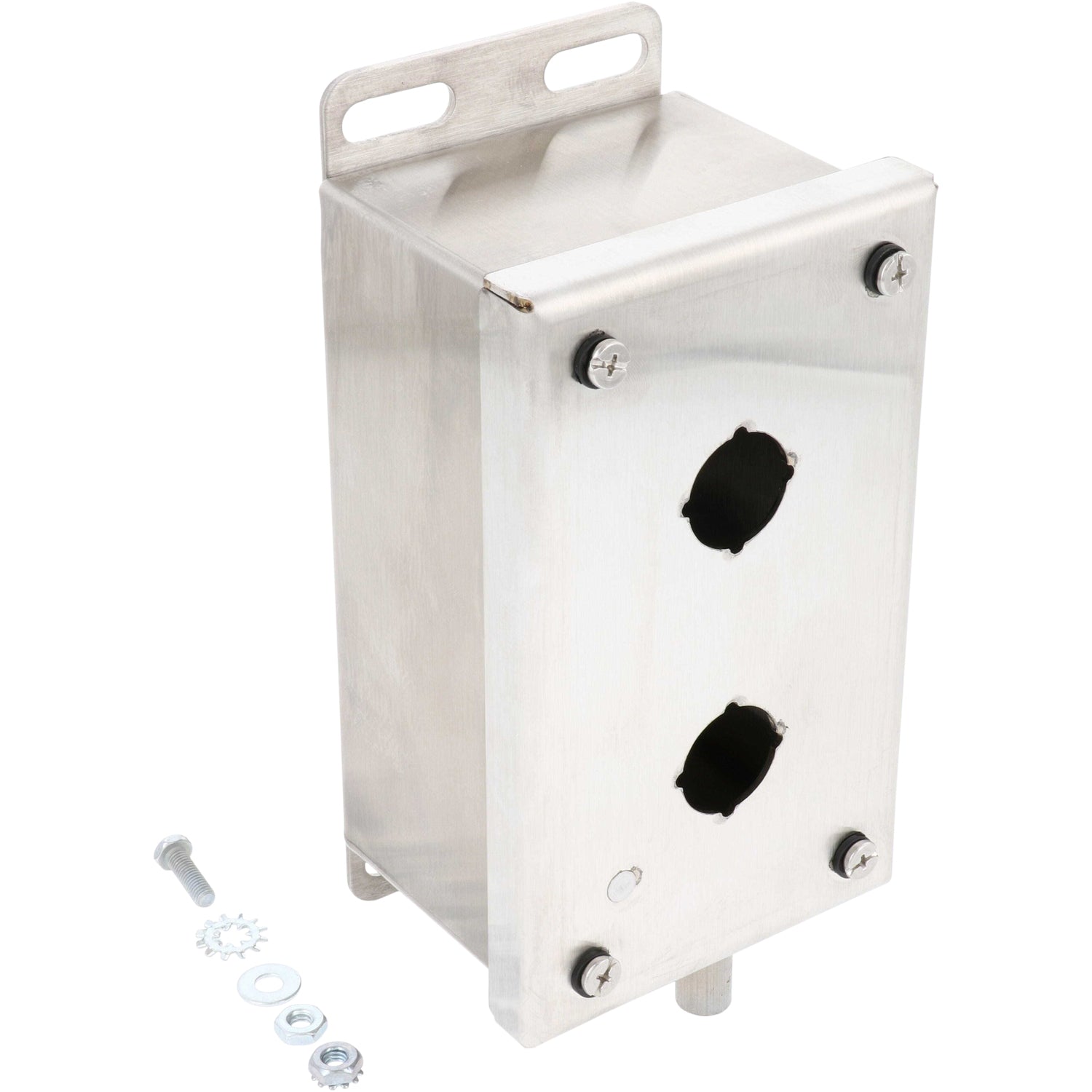

Rectangular stainless steel box with four screws in each corner of the cover plate and two through holes used to mount push buttons. An assortment of fasteners are shown next to the box. These parts are shown on a white background.

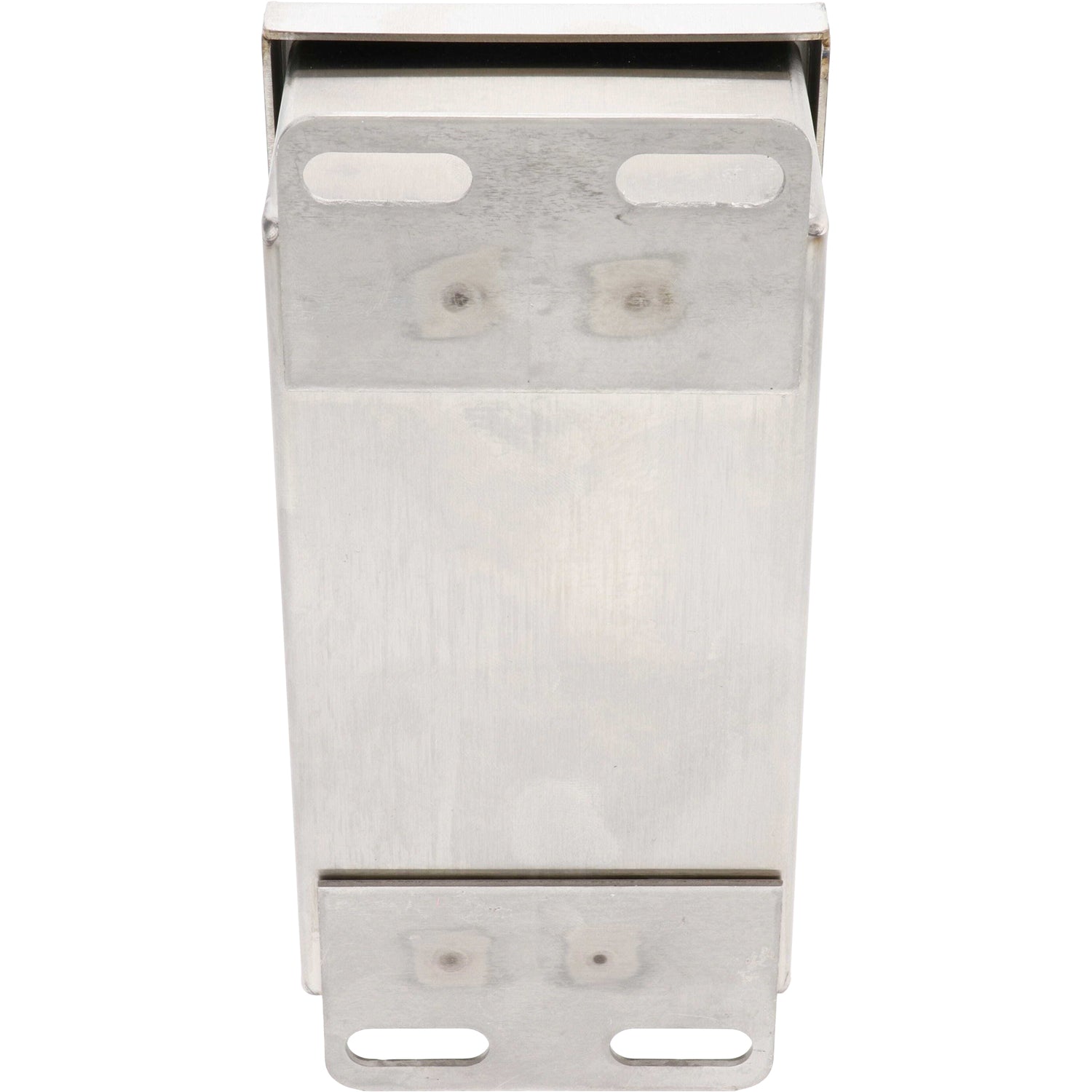

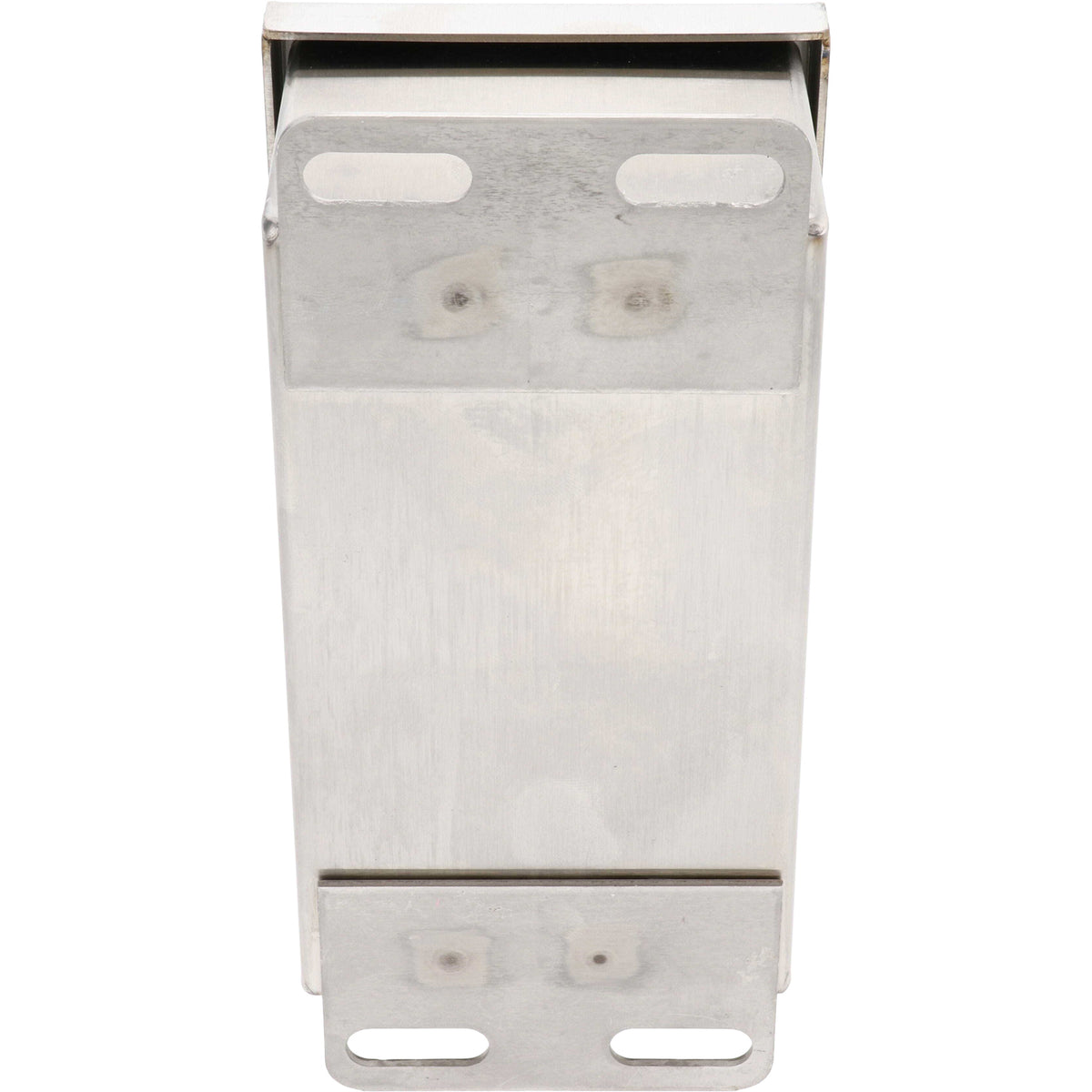

Backside of rectangular stainless steel box with four slotted mounting holes, shown on a white background.

E Stop/Reset Box

Name: E Stop/Reset Box
Brand: AAP Automation, Inc.
SKU: SCE-2PBSSI
Price: 397.82 USD
Availability: InStock

SCE-2PBSSI

.price-ui--loading { display: block !important; opacity: 1 !important; }

$397.82

The stainless steel E-stop/Reset Box houses the Lidless Can Reset and Emergency Stop buttons on Legacy WGC-100/250, early Evolution Series and all Fusion canning systems.

Height: 5.75"
Width: 3.25"
Depth: 2.75"
0.063 In. stainless steel Type 304.
Seams continuously welded and ground smooth.
Captivated cover screws thread into sealed wells.
4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights. Hole diameter is 0.87 In. (22.5mm).
Immediate removal of cover is permitted.
Pour in place oil & water resistant gasket
Welded mounting provision top and bottom of back.
