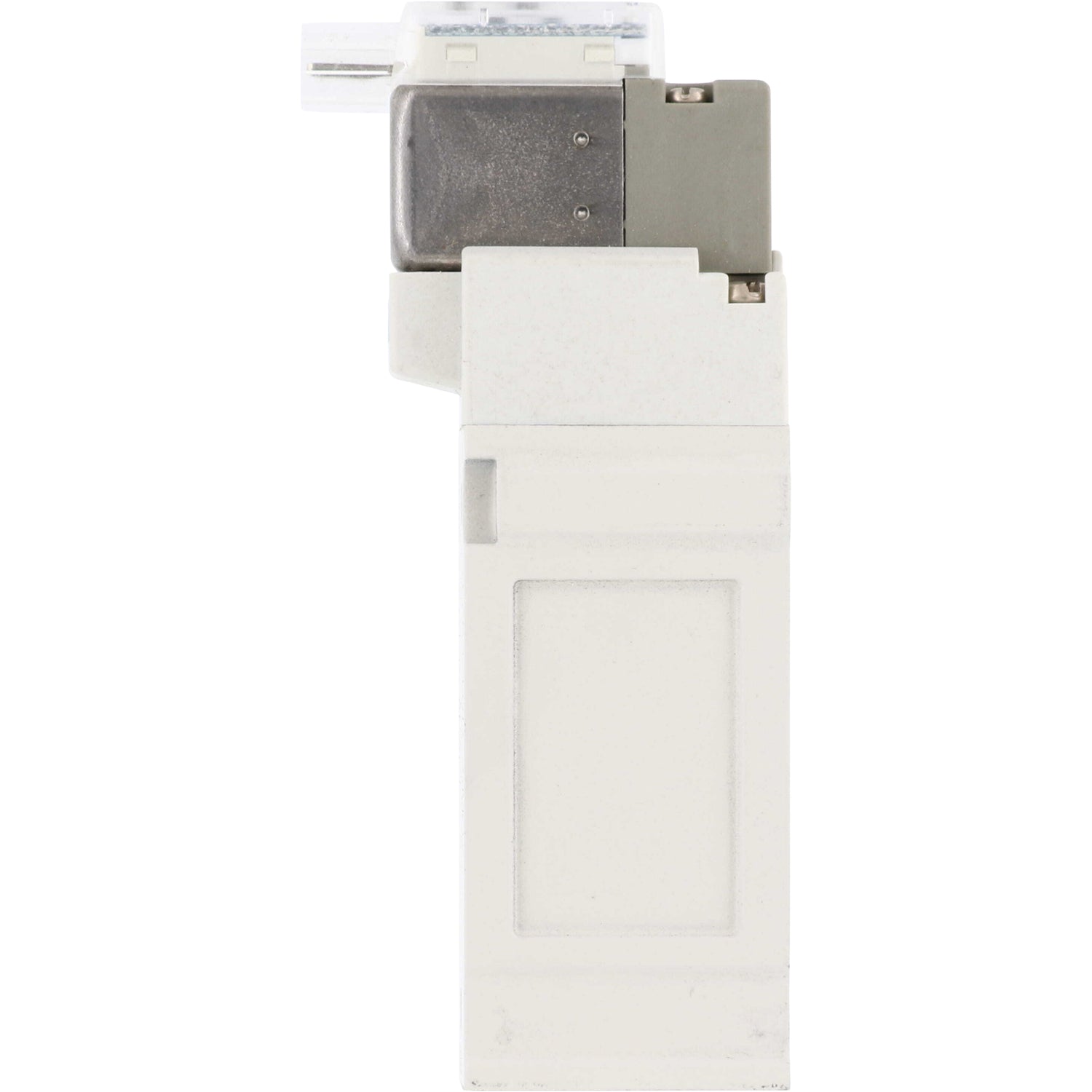

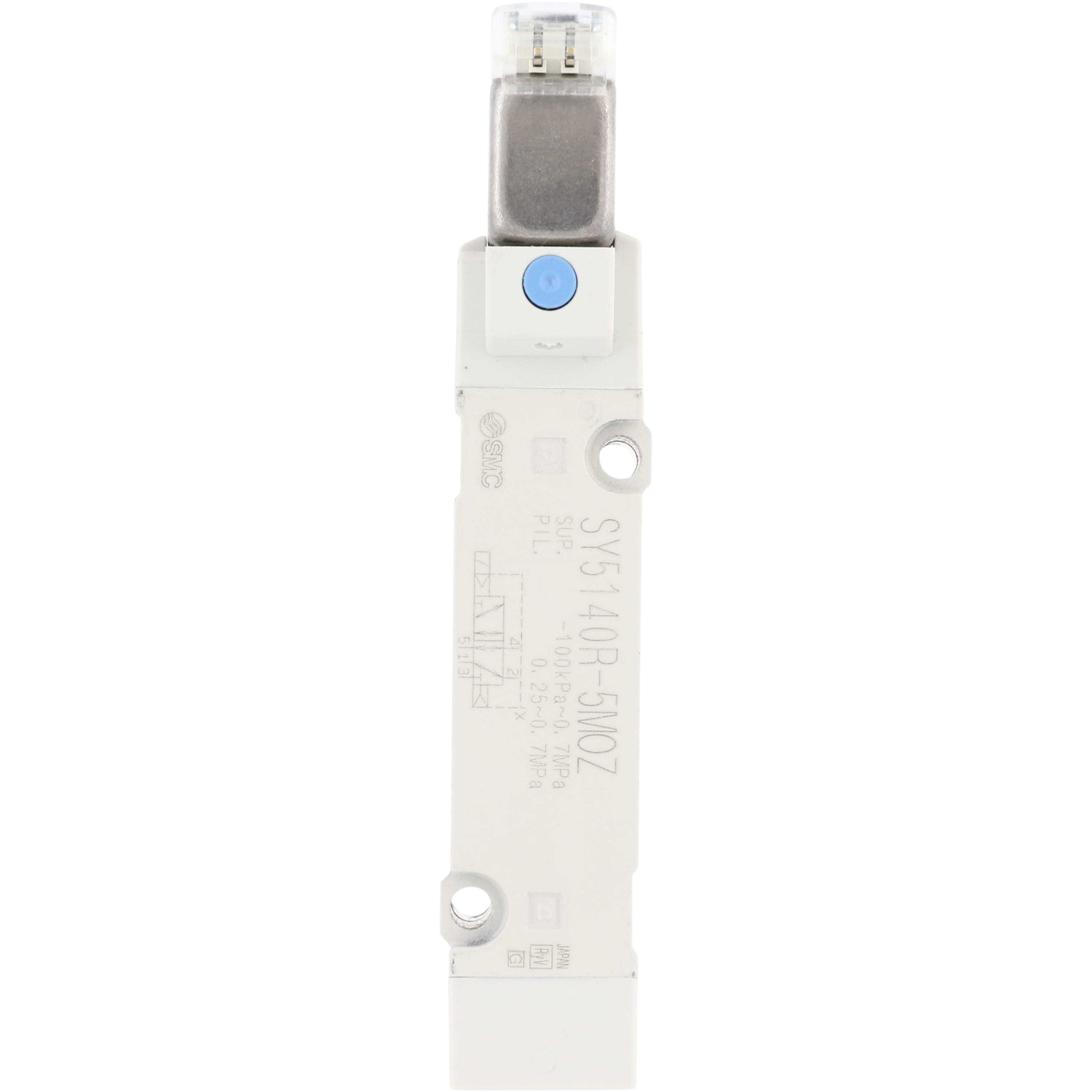

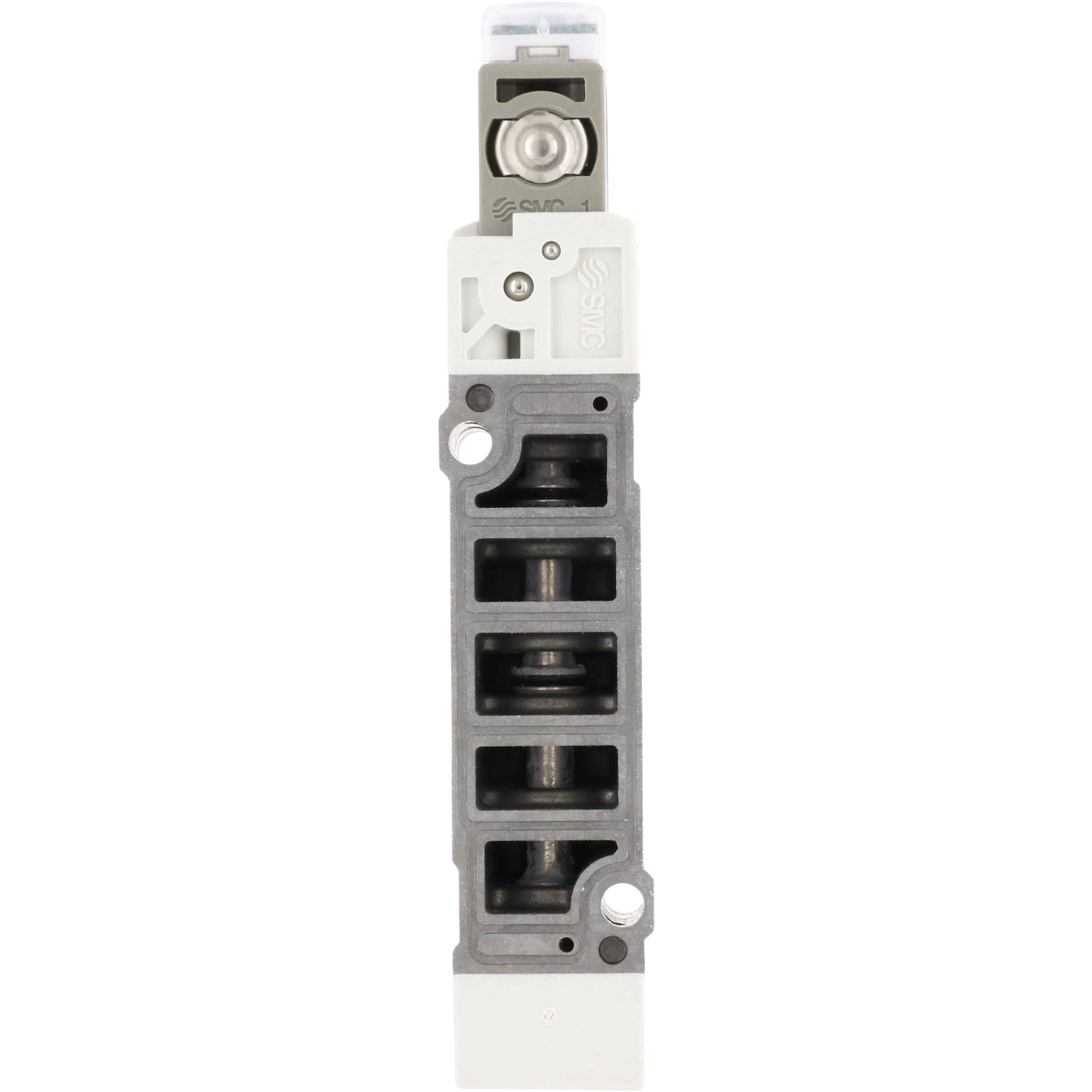

SY5 Valve Manifold

Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.

• Fluid: air
• Operating pressure range: (internal pilot) 0.1 - 0.7MPa
  (external pilot) -100kPa to 0.7MPa
  (external pilot, pilot pressure range) 0.25 - 0.7MPa
• Effective area mm ² (Cv): body ported 10.6 (0.59);
  base mounted 12.6 (0.7)
• Coil rated voltage: 3, 5, 6, 12, 24VDC;
  100, 110, 200, 220VAC
• Response time (0.5MPa) w/o indicator light &
  surge voltage suppressor: 32ms or less
• Ambient & fluid temperature: 50°C

Specs:

• Type of Actuation: 2 Position Single
• Manifold Type: Base Mounted Non Plug-in Single/Stacking Base, Plug-in Stacking base
• Pilot: External Pilot
• Voltage: 24VDC
• Electrical Entry: M Plug w/o Connector
• Surge Suppressor: Light & Surge Suppressor
• Manual Override: Non-locking Push Style
• A, B Port Size: Base Mounted w/o Sub-plate
