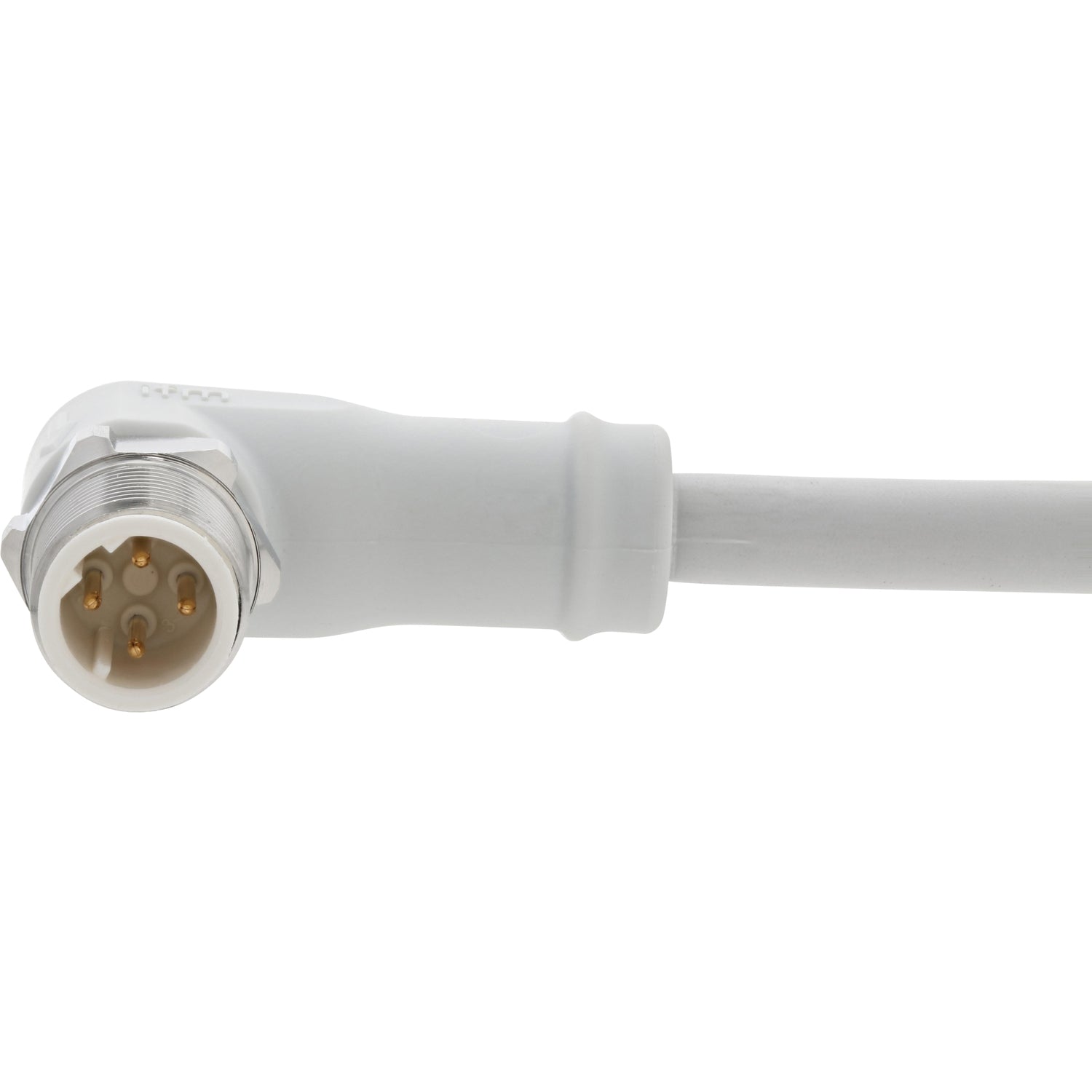

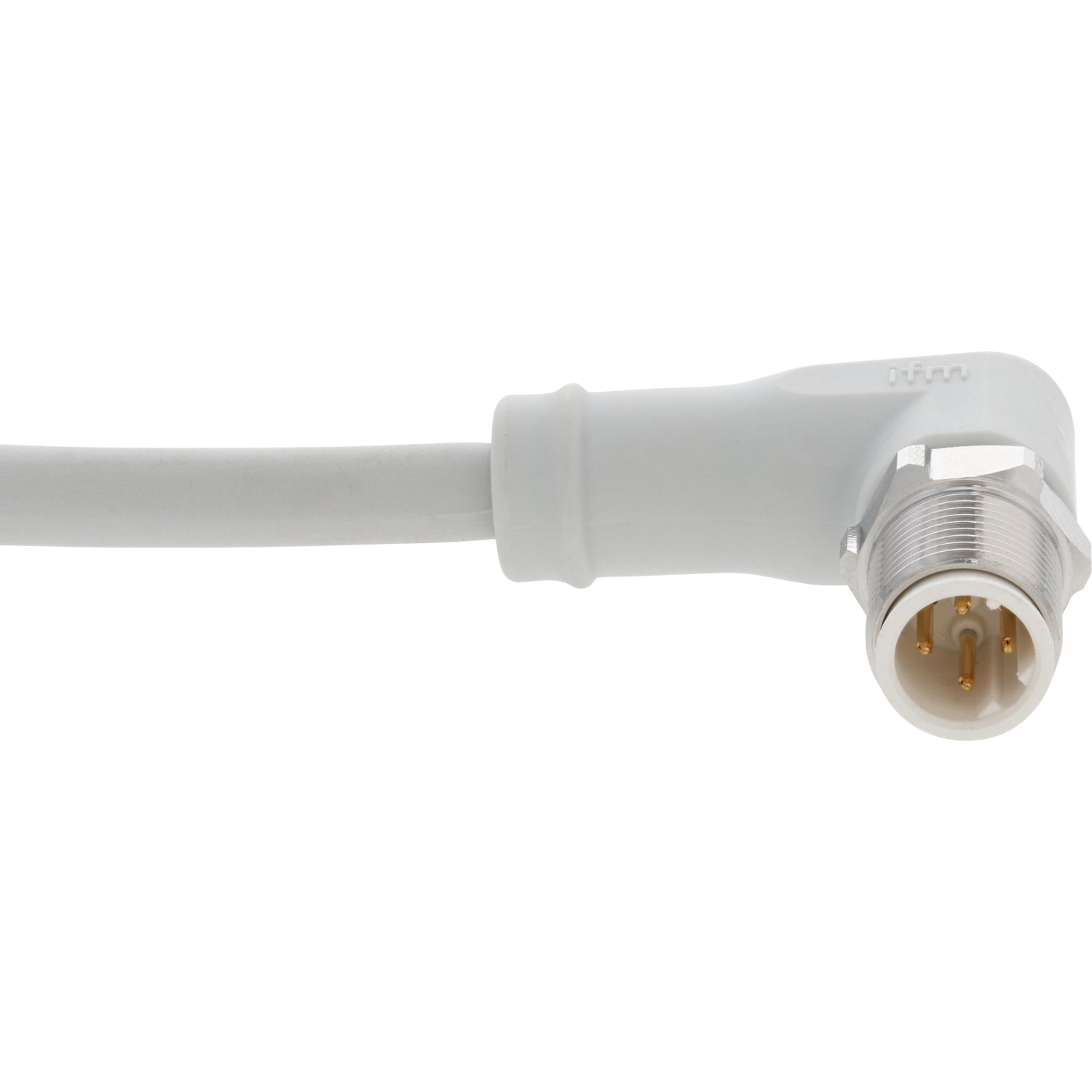

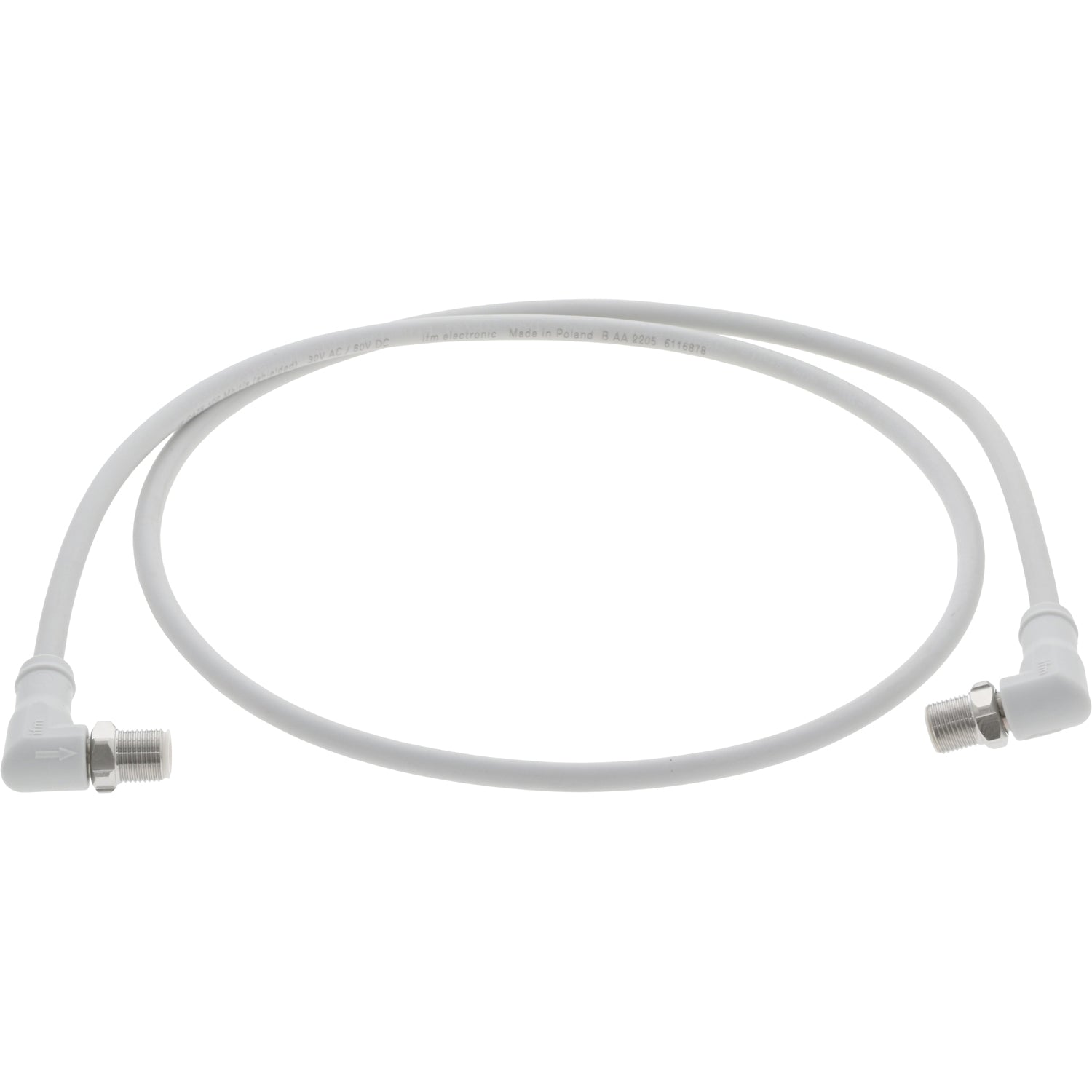

Ethernet Patch Cable
EVF544 *NEW*
$32.00
This Ethernet connecting cable is used with Fusion counterpressure systems.
Application
- System: Free from silicone; Halogen-free; gold-plated contacts; screened cable; Drag chain suitability
- Design: Ethernet cable, D-coded
- Application: Industrial Ethernet; CAT5/CAT5e; 100 Mbit/s; sanitary and wet areas in the food industry
- Free from silicone
Electrical data
- Operating voltage [V]: 30 AC / 60 DC
- Protection class: lll
- Max. current load total [A]: 4
Operating conditions
- Ambient temperature [°C]: -25...100
- Ambient temperature (moving) [°C]: 0...80
- Protection: IP 65; IP 67; IP 68; IP 69K
Mechanical data
- Weight [g]: 99.9
- Dimensions [mm]: 35.5 x 15.5 x 38
- Length [m]: 1
- Material: PP Halogen-free
- Molded-body material: PP
- Material nut: stainless steel (1.4404 / 316L)
- Drag chain suitability: yes
-
