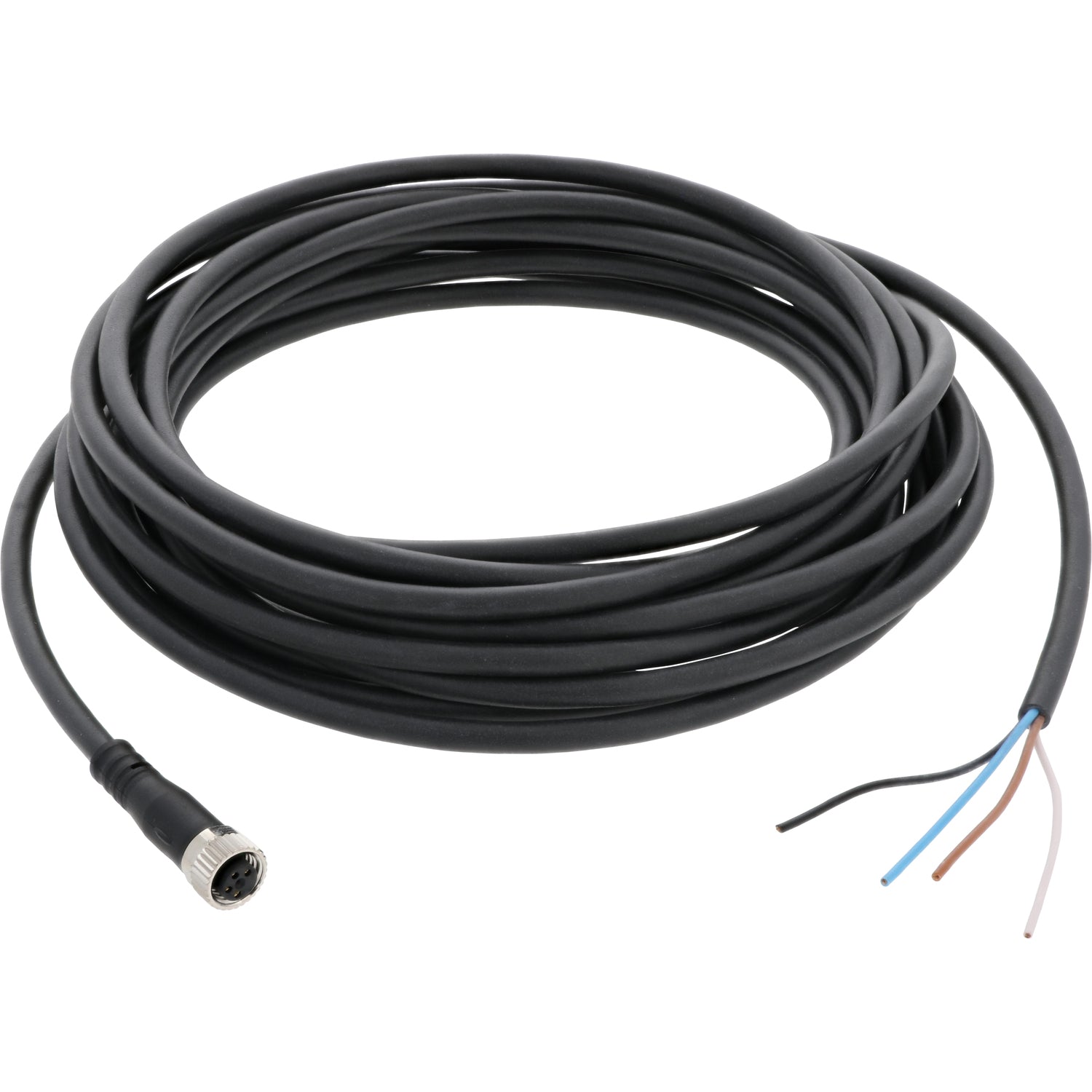

This four pin connecting cable is 5m (16.4 ft) and is used with all Fusion systems.

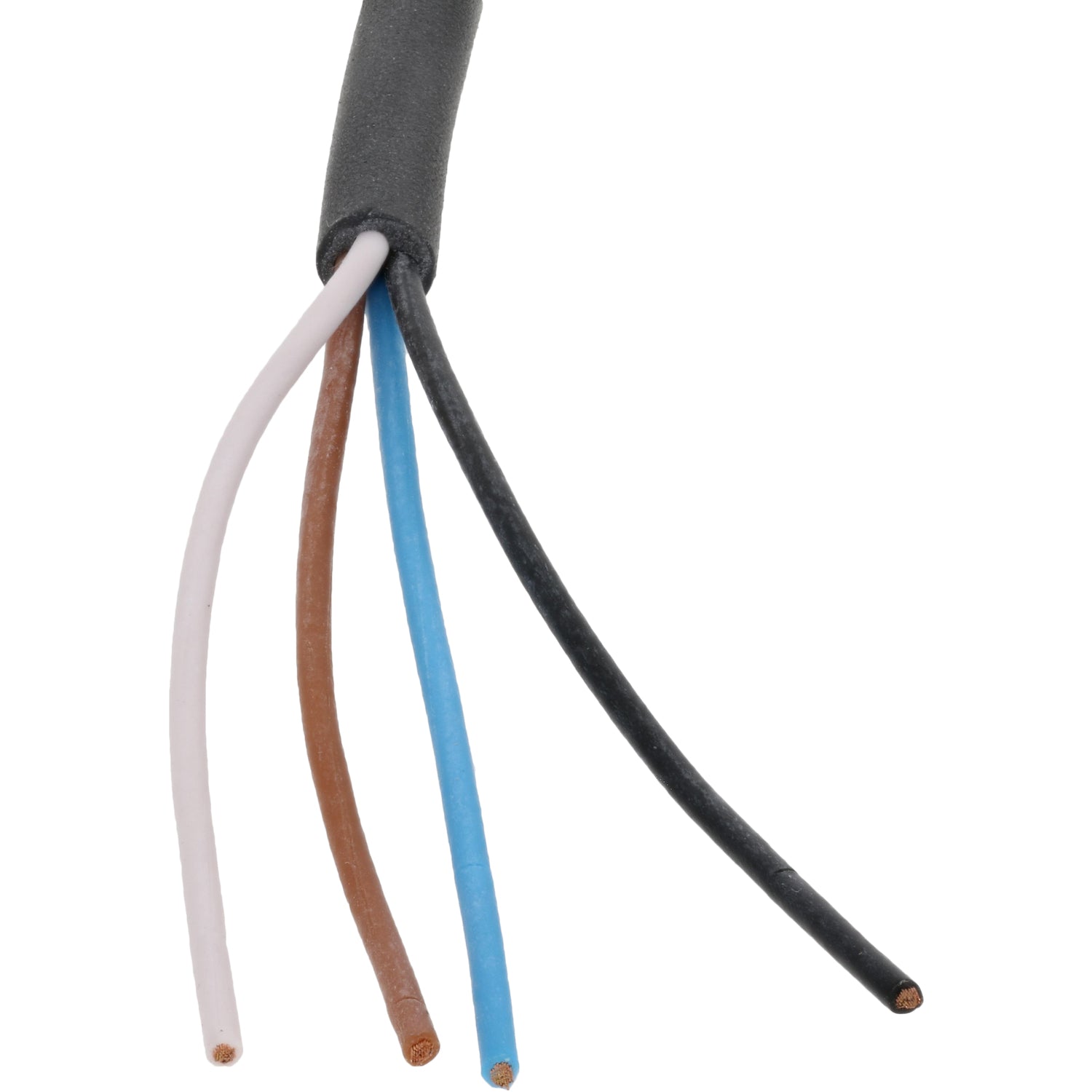

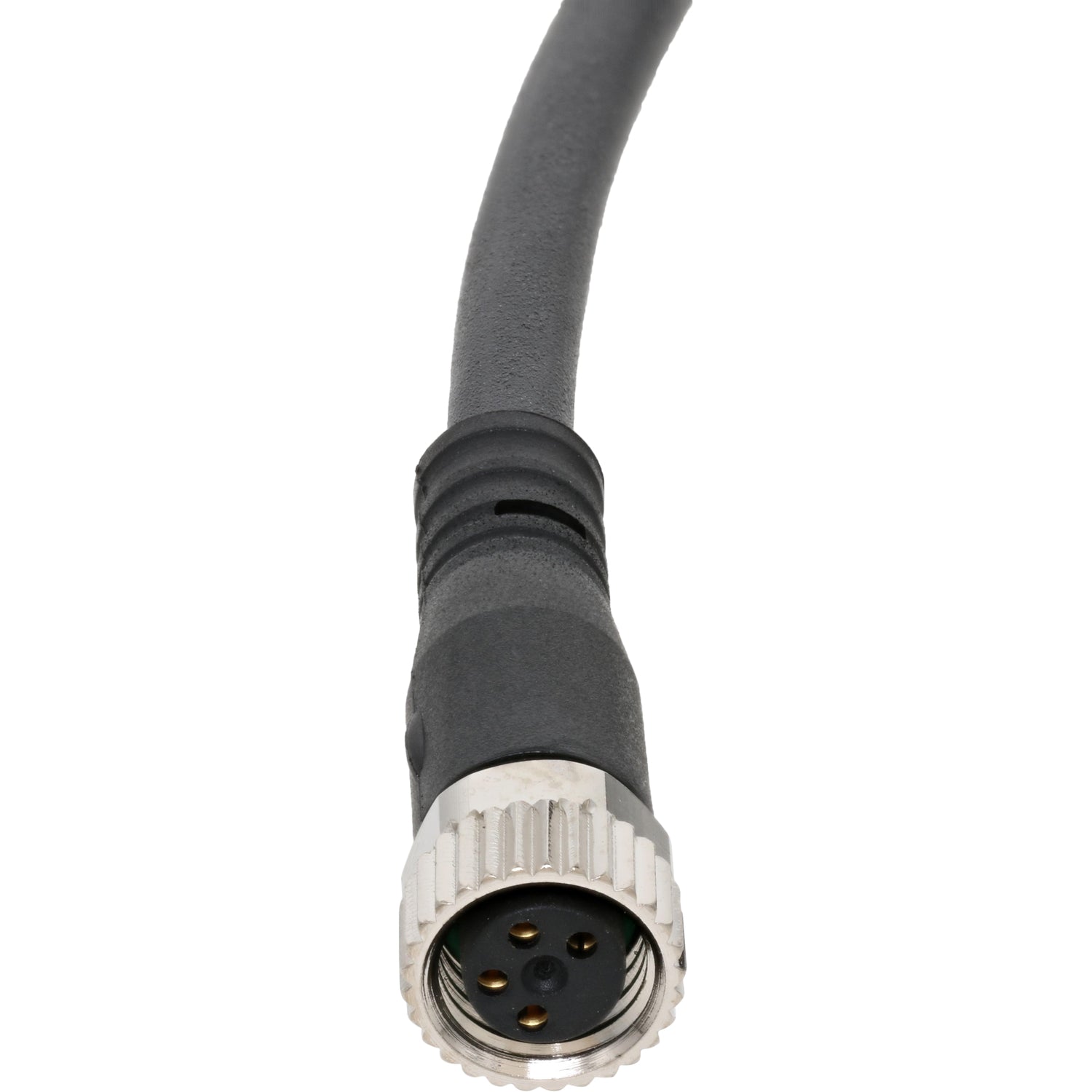

It has a molded straight M8x1 threaded female connection on one end and an open end with a white, brown, blue and black wire on the other.
For power supply
Suitable for energy-chains
Specs:
- DC operating voltage range: 0 V ... 30 V
- Nominal operating voltage DC: 24 V
- Operating voltage range AC: 0 V ... 30 V
- Nominal operating voltage AC: 24 V
- Current rating at 40° C: 5.2 A
- Surge resistance: 0.8 kV
- Protective earth connection: Not available
- Shield: no
- Cable diameter: 4.8 mm
- Material of screw-type lock: Brass, nickel-plated
