Seam Rotary Cylinder Air Fittings
578277
$8.64

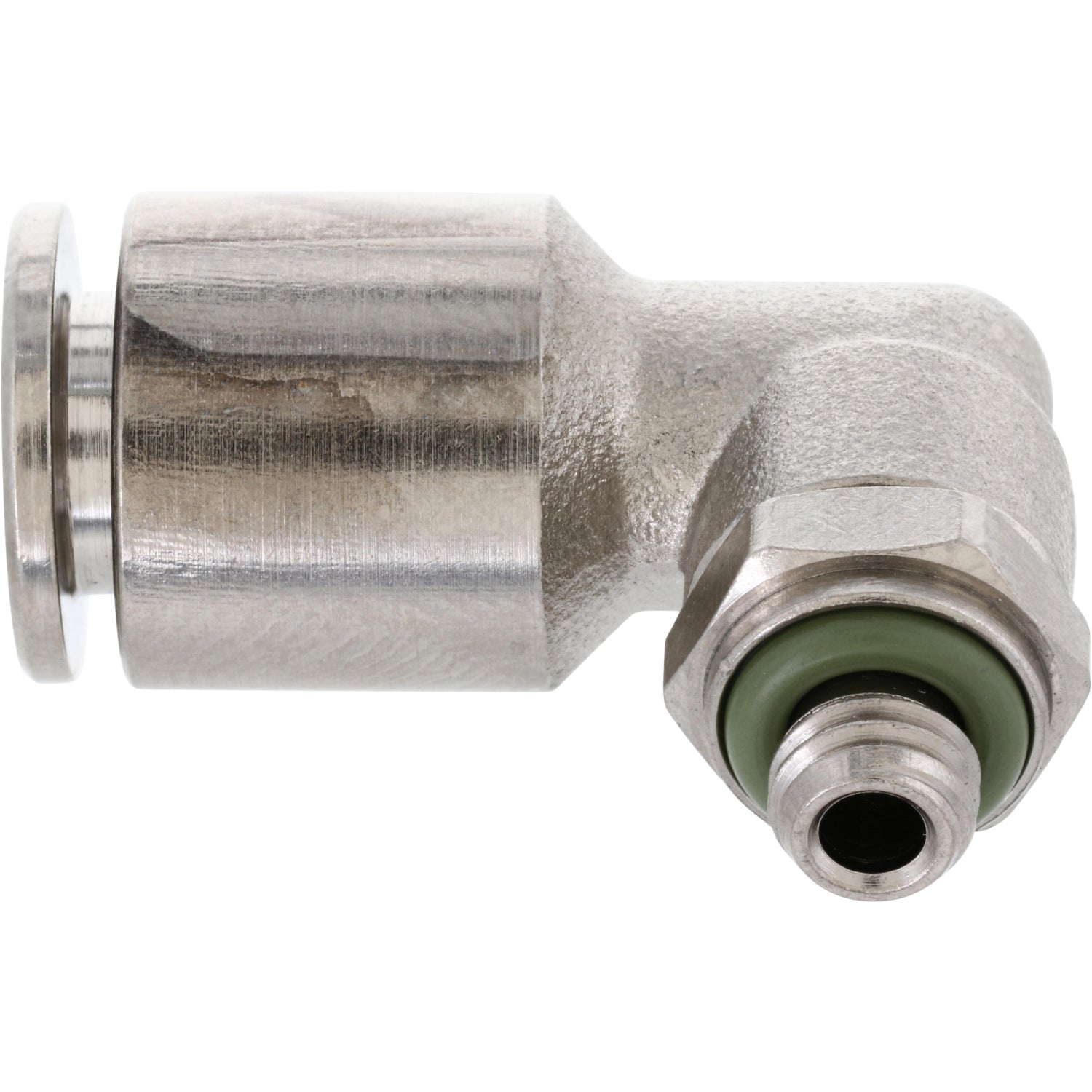

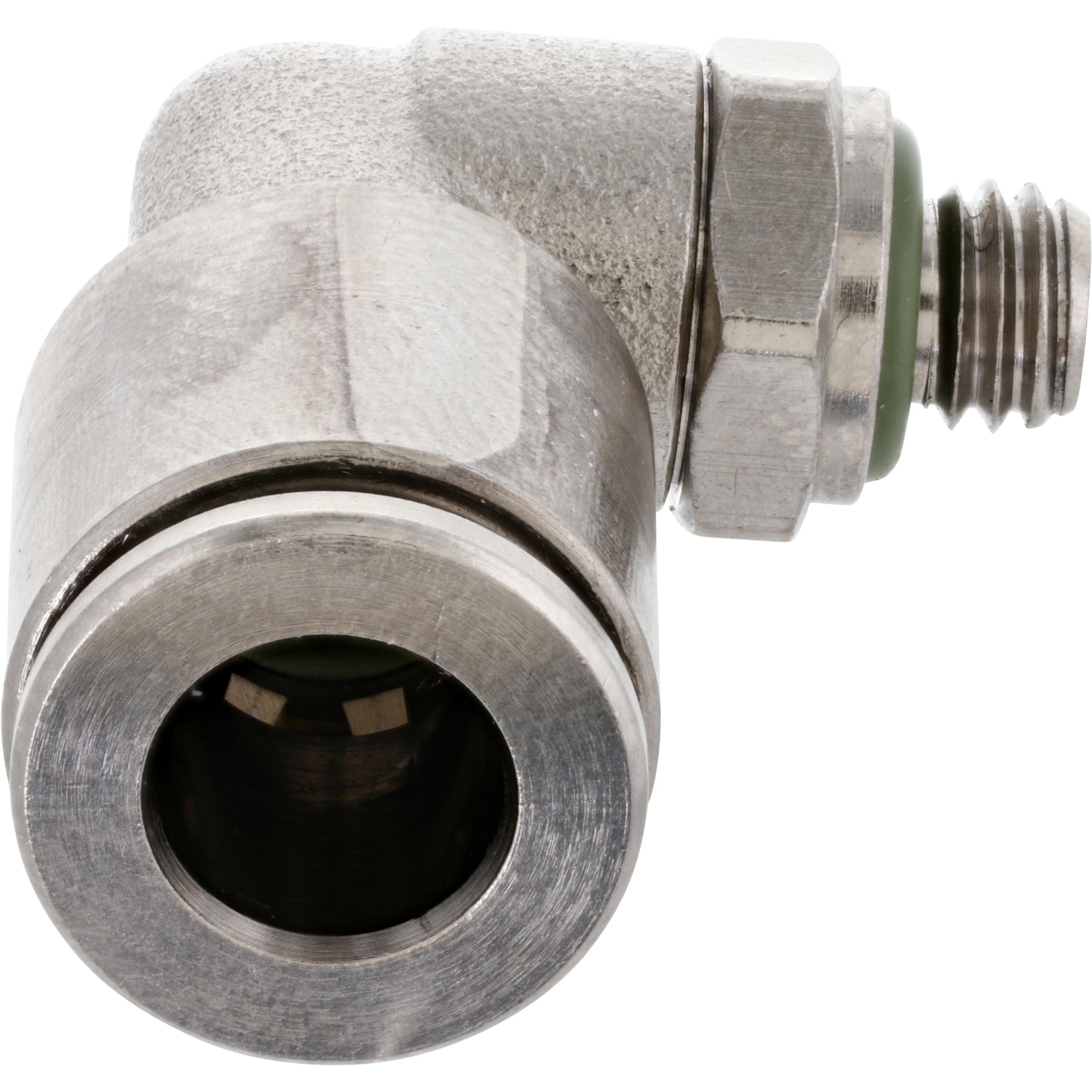

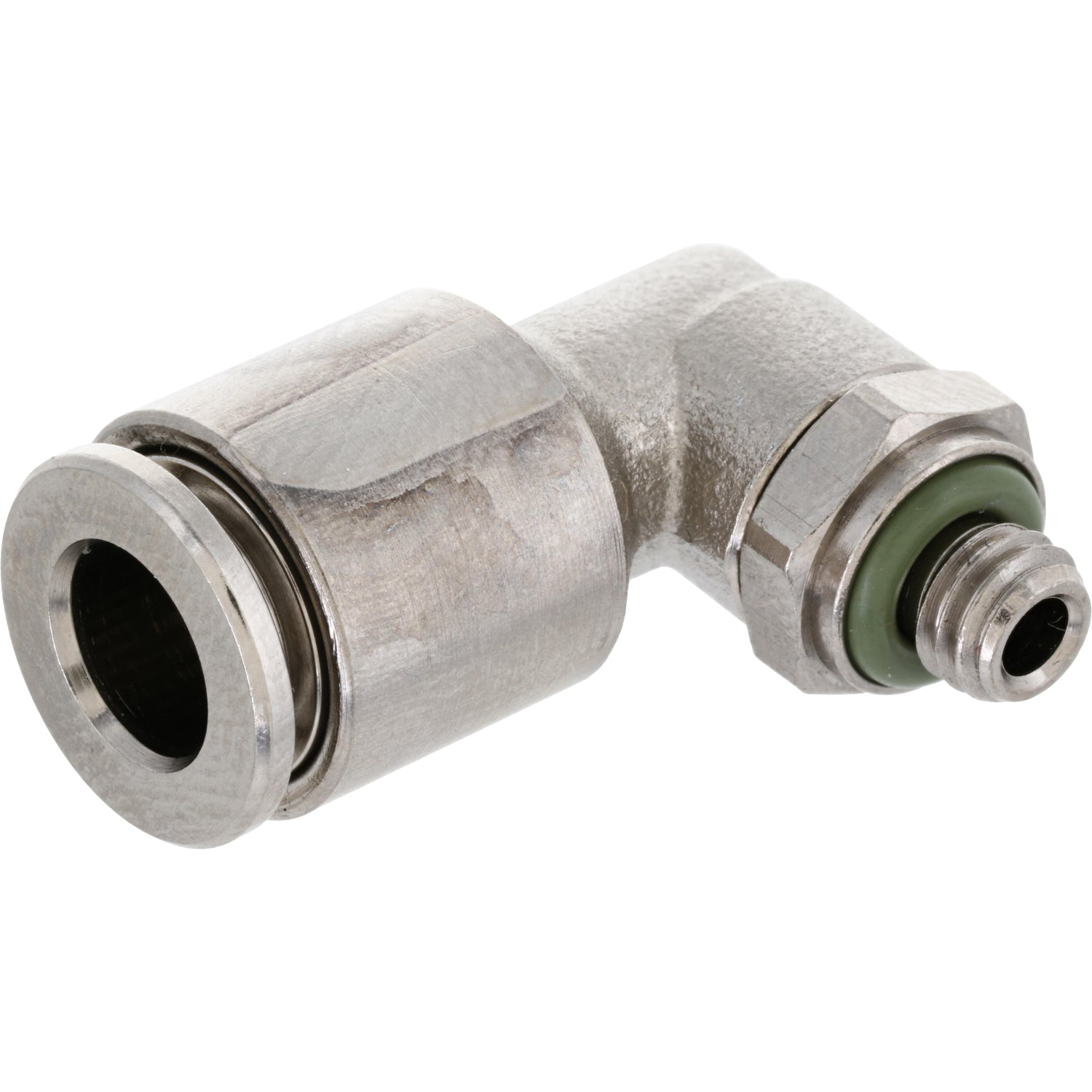

This Push-in L-fitting is used to connect compressed air to the rotary cylinders on all standard Wild Goose Filling seamers.
Two of these non-flow control fittings are used on the 2nd op rotary cylinder and only one is used with the 1st operation rotary cylinder.
Not used with Gosling or Quick Change seamers.
Specs:
- Tubing insertion depth: 15.8 mm
- Design: L-shape
- Structural design: Push-pull principle
- Operating pressure for entire temperature range: -13.775 psi ... 290 psi
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
- Nominal tightening torque: 1 Nm
- Tolerance for nominal tightening torque: ± 20%
- Pneumatic connection 1: External thread M5
- Pneumatic connection 2: For pneumatic tubing with an outside diameter of 6 mm
- Housing material: Brass, chemically nickel-plated
