Seam Rotary Cylinder Air Fittings

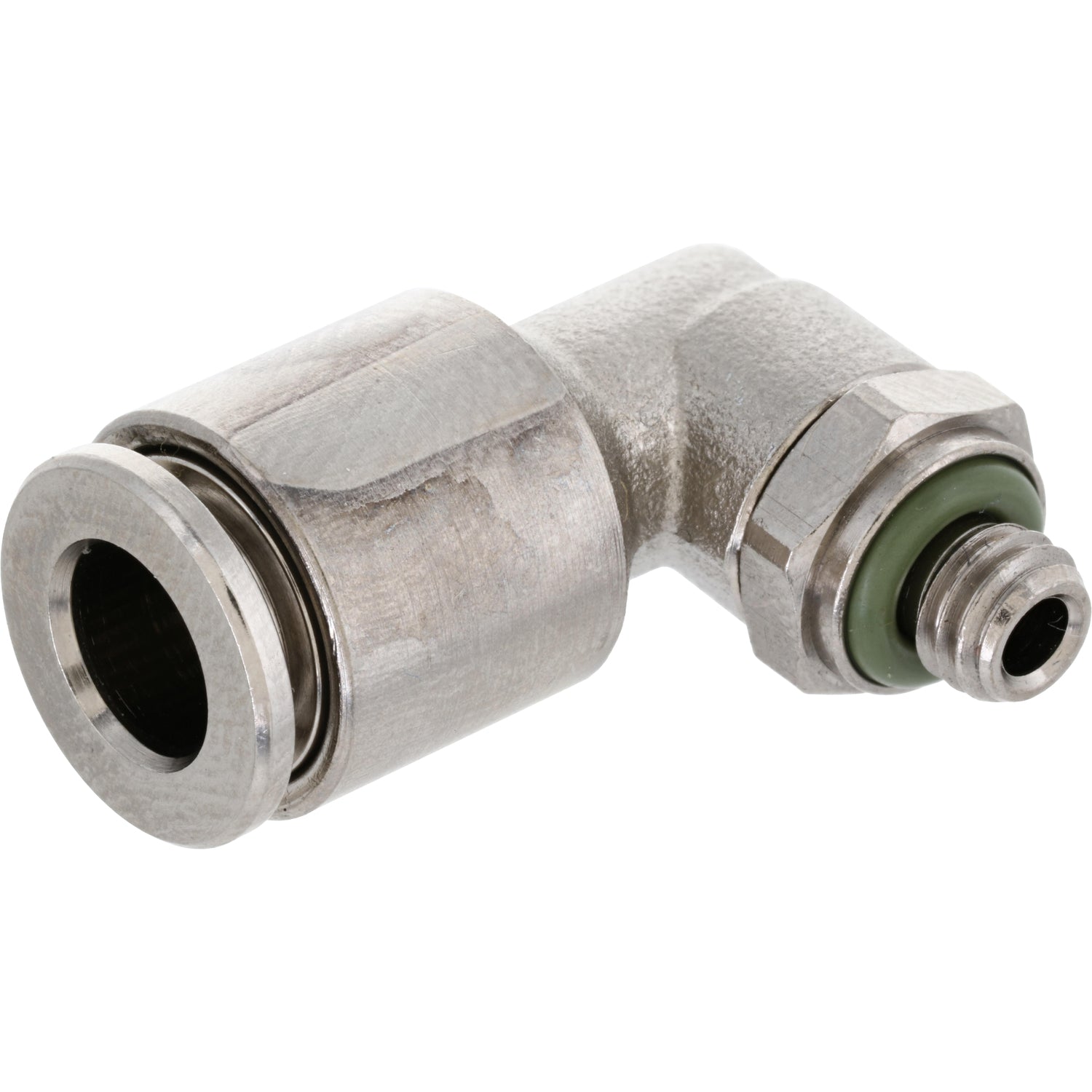

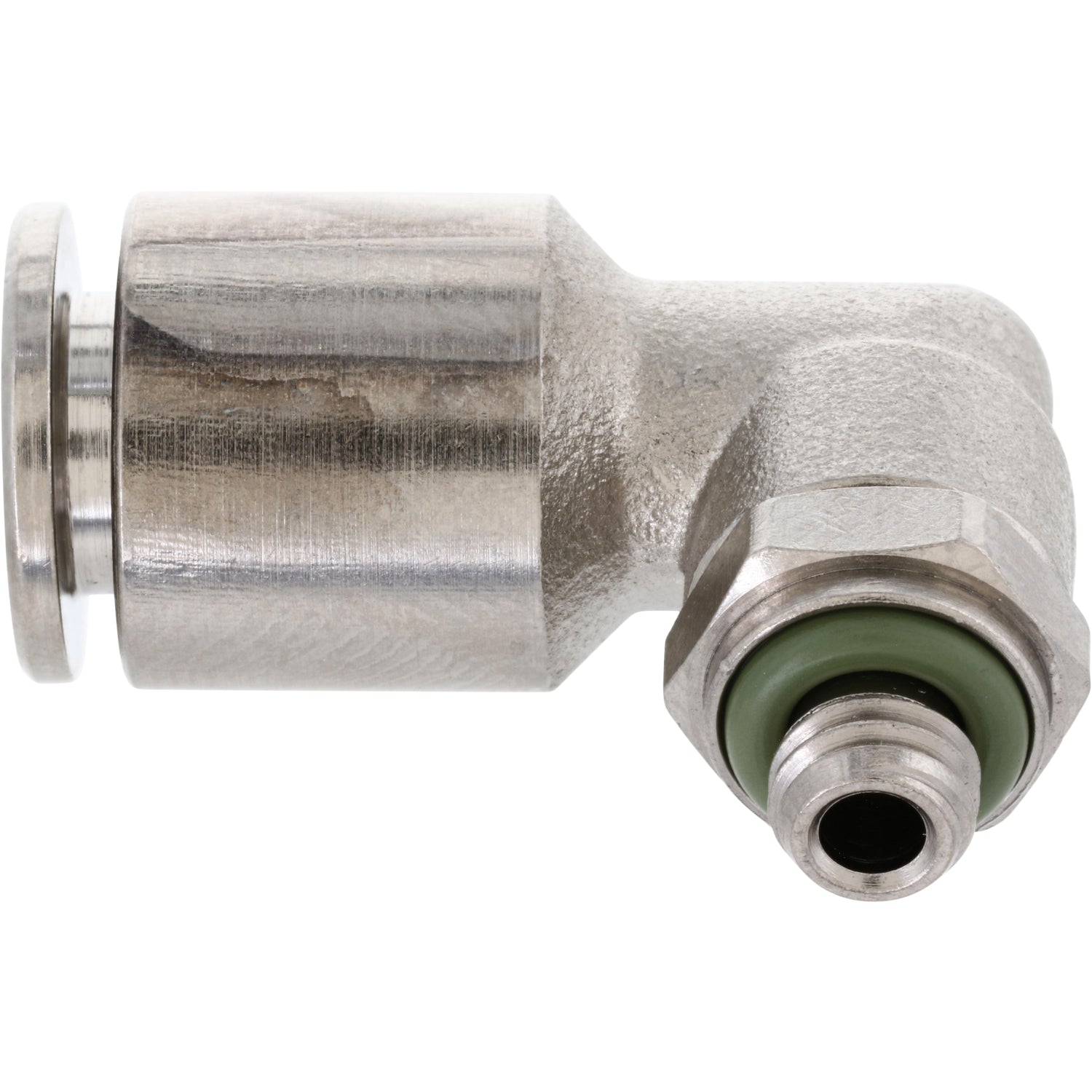

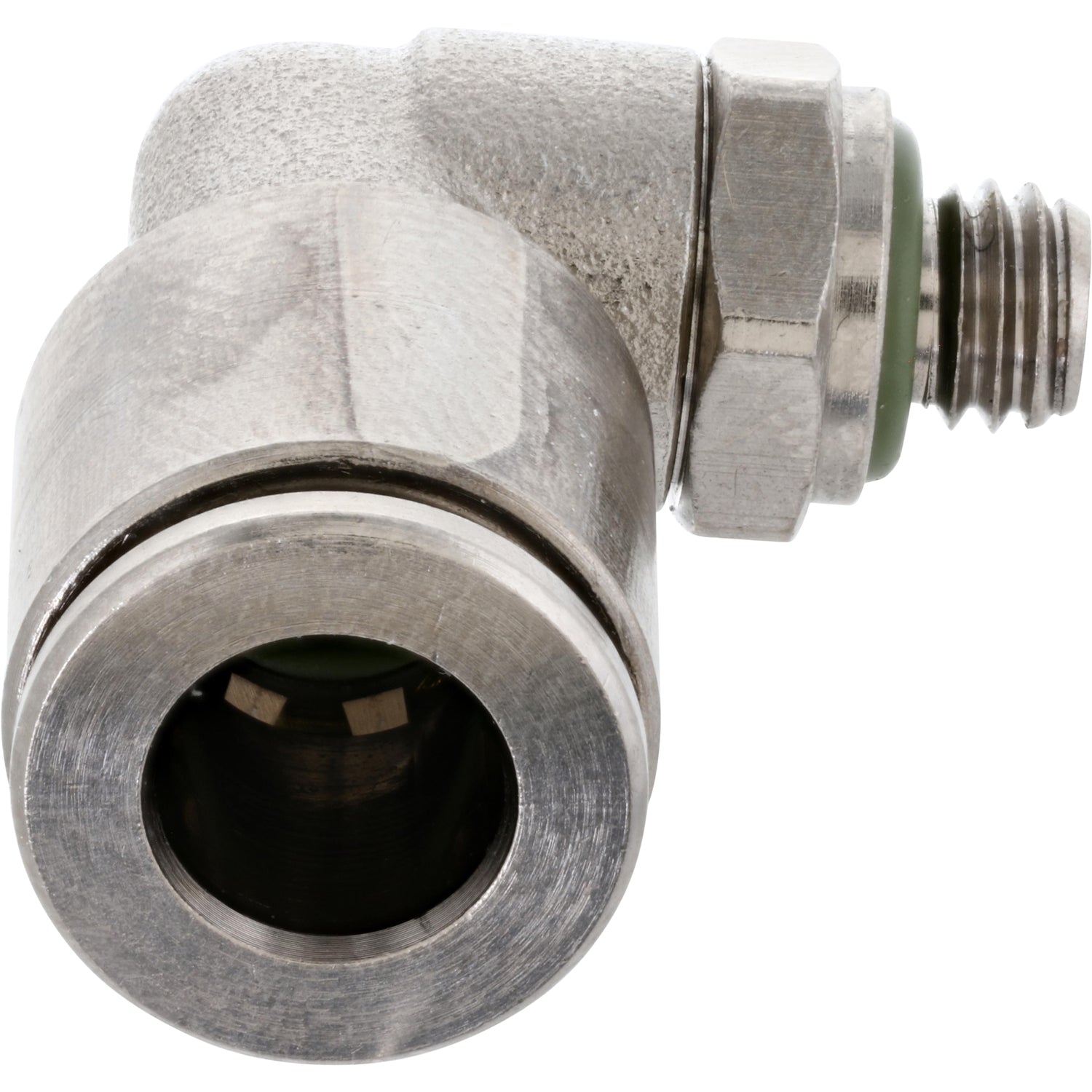

This Push-in L-fitting is used to connect compressed air to the rotary cylinders on all standard Wild Goose Filling seamers.

Two of these non-flow control fittings are used on the 2nd op rotary cylinder and only one  is used with the 1st operation rotary cylinder.

Not used with Gosling or Quick Change seamers.


  • Tubing insertion depth: 15.8 mm
  • Design: L-shape
  • Structural design: Push-pull principle
  • Operating pressure for entire temperature range: -13.775 psi ... 290 psi
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Nominal tightening torque: 1 Nm
  • Tolerance for nominal tightening torque: ± 20%
  • Pneumatic connection 1: External thread M5
  • Pneumatic connection 2: For pneumatic tubing with an outside diameter of 6 mm
  • Housing material: Brass, chemically nickel-plated
