Model EA1-T6CL C-more 6” Micro touch panel has a 5.7-inch TFT LCD 320 x 240 pixel display and a palette of 32K colors for customizing objects, screen backgrounds and displaying bitmap graphics.

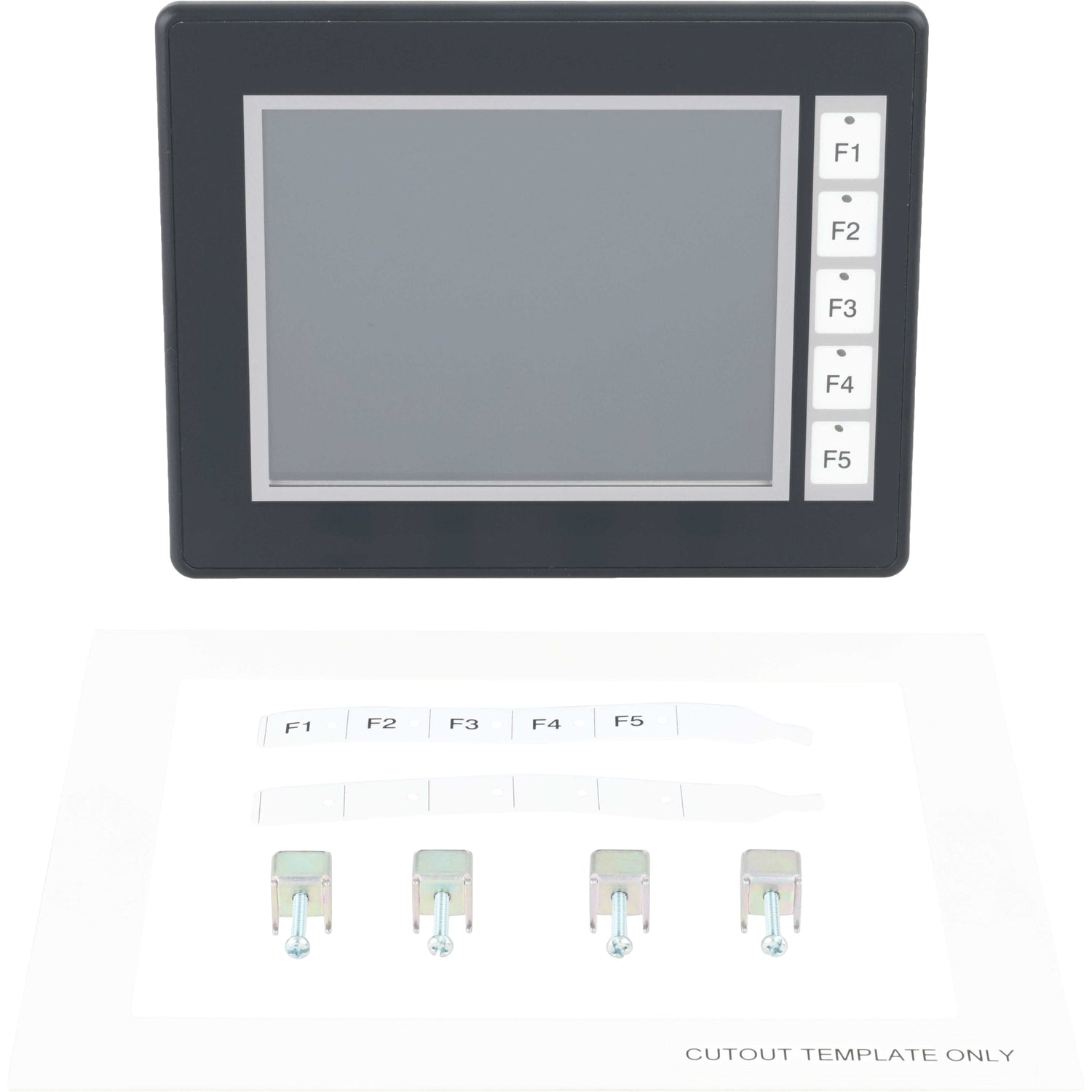

It features five user-defined function keys, each key with a user-defined red LED indicator.
The panel can display up to 40 lines by 80 characters of static text and up to 40 lines by 40 characters of dynamic text with embedded variables and phrases mixed with graphics in landscape orientation.
Portrait orientation can display 53 lines by 60 characters of static text and 40 lines by 40 characters of dynamic text.
It is rated UL for use on a flat surface of Type 1, 4X enclosure (for indoor use only).
The C-more 6” Micro TFT panels are powered from a Class 2, 12-24 VDC power supply.
Features:
- Touch screen display
- Free downloadable programming software
- 3,276 KB memory
- Built-in USB type B programming port
- Built-in 15-pin serial communications port
- Built-in Alarm Control setup that activates beep, backlight flash, customized alarm banner, and red LED blinking
- 0 to 50 °C (32 to 122 °F) operating temperature range (IEC 60068-2-14)
- NEMA 4/4X, IP65 compliant when mounted correctly, indoor use only
- UL, cUL & CE agency approvals
