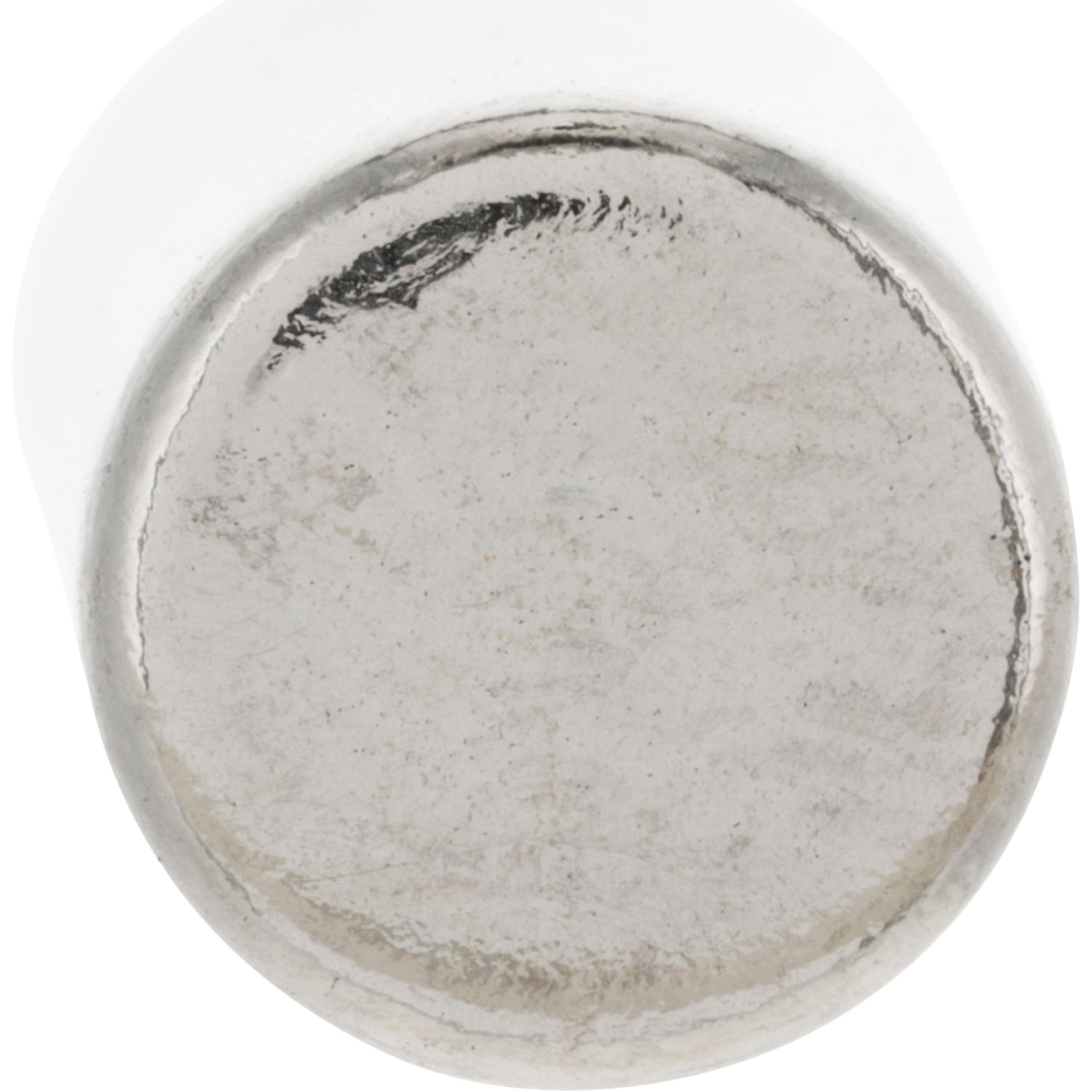

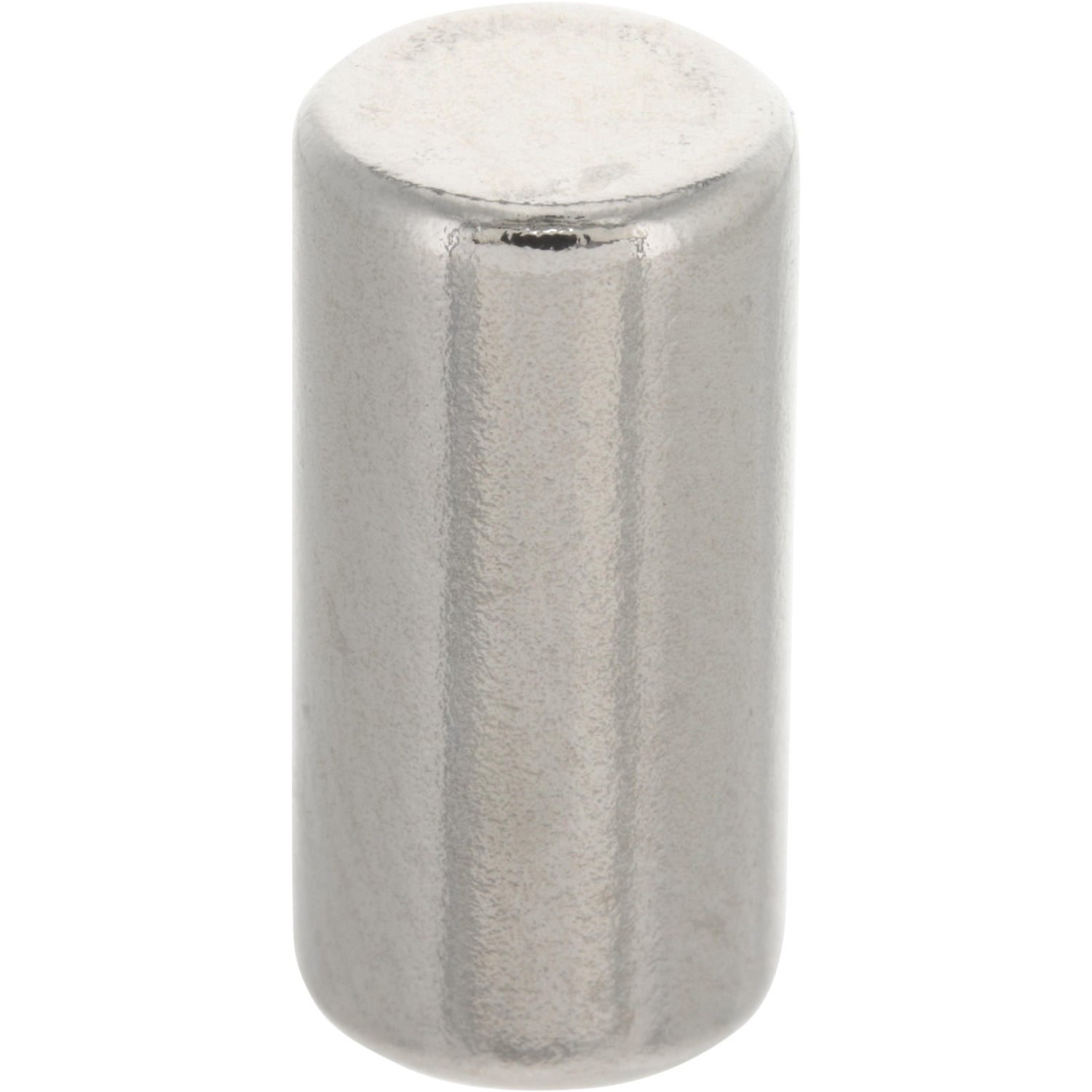

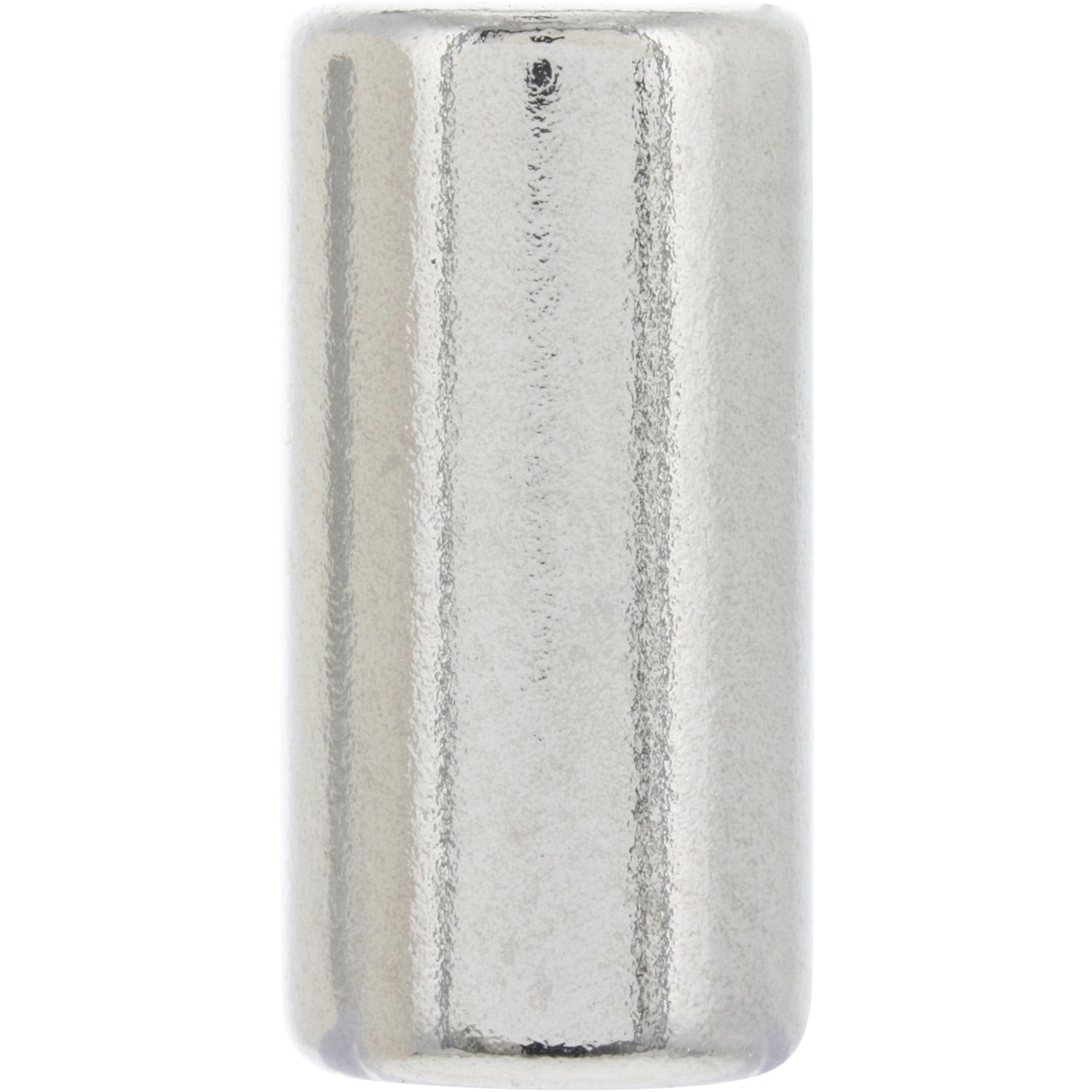

Lid Dropper Chute Magnet
D48
$4.60
Lid Dropper Chute Magnets are pressed into each side of the Lid Dropper Chute and are used to hold the Lid Catchers in place.
These magnets are used on all Wild Goose Filling Lid Droppers.
- Dimensions: 1/4" dia. x 1/2" thick (6.35mm dia. x 12.7mm thick)
- Tolerances: ±0.004" x ±0.004" (±0.102mm x ±0.102mm)
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.106 oz. (3.02 g)
- Pull Force, Case 1: 3.87 lbs (1.76kg)
- Pull Force, Case 2: 3.99 lbs (1.81kg)
- Surface Field: 6403 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe
