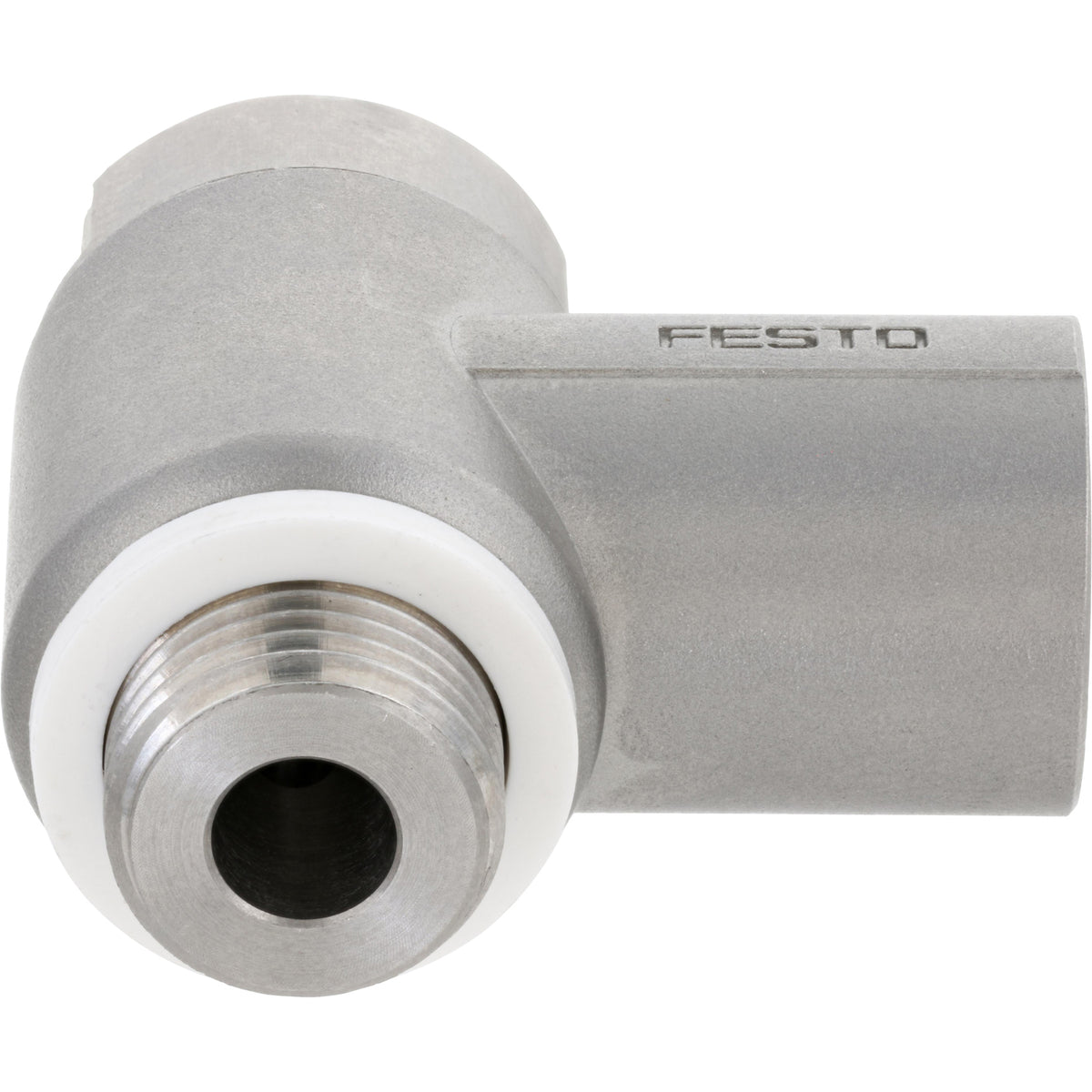

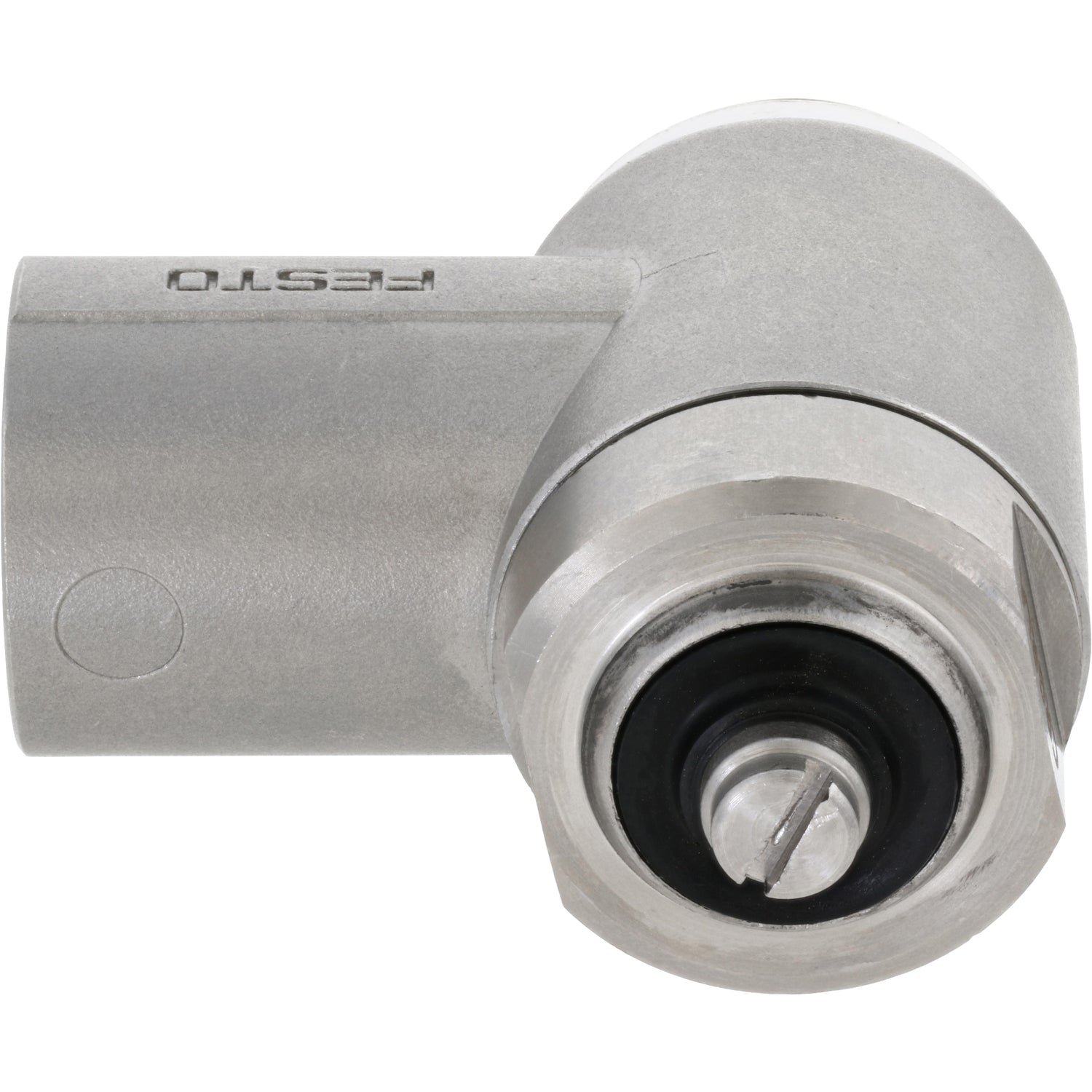

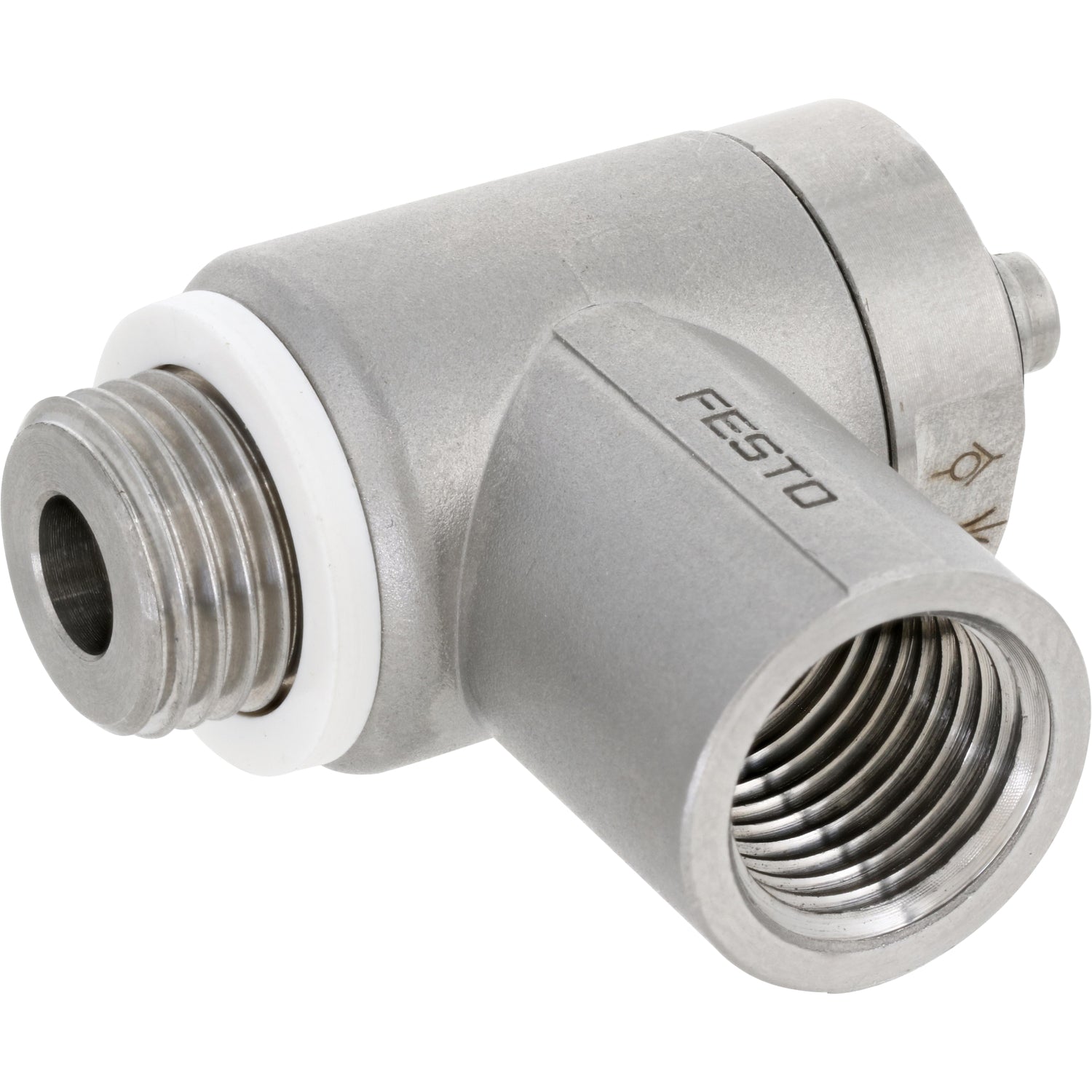

Stainless One-Way Flow Control Valve

This one-way flow control valve is found on seam lift cylinders on all Evolution Series, WG8/10 and Fusion seamers.

This valve controls the lowering speed of the Seam Lift Cylinder.

Not compatible with Gosling and early WGC-50/100/250 seamers with the Legacy Seam Lift Cylinder.

Features:

  • Functional combination of throttle check valve and piloted non-return valve
  • Flow control valve, throttling at one end
  • Polymer, metal, or stainless steel design

Specs:

  • Valve function: Flow control non-return function
  • Pneumatic connection 1:
  • Pneumatic connection 2: G¼
  • Actuation type: Manual
  • Adjusting element: Slotted Screw
  • Standard nominal flow rate in flow control direction: 610 l/min
  • Standard nominal flow rate in non-return direction: 450 l/min ... 820 l/min
  • Operating pressure: 4.35 psi ... 145 psi
  • Rotatability: 360 deg/continuous swiveling not permissible
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Max. tightening torque: 11 Nm
  • Permissible actuation moment, adjusting screw: 1.5 Nm



Regular price $109.11
/
+ VAT Shipping calculated at checkout.

161405

  • Hurry, only 8 items left!
