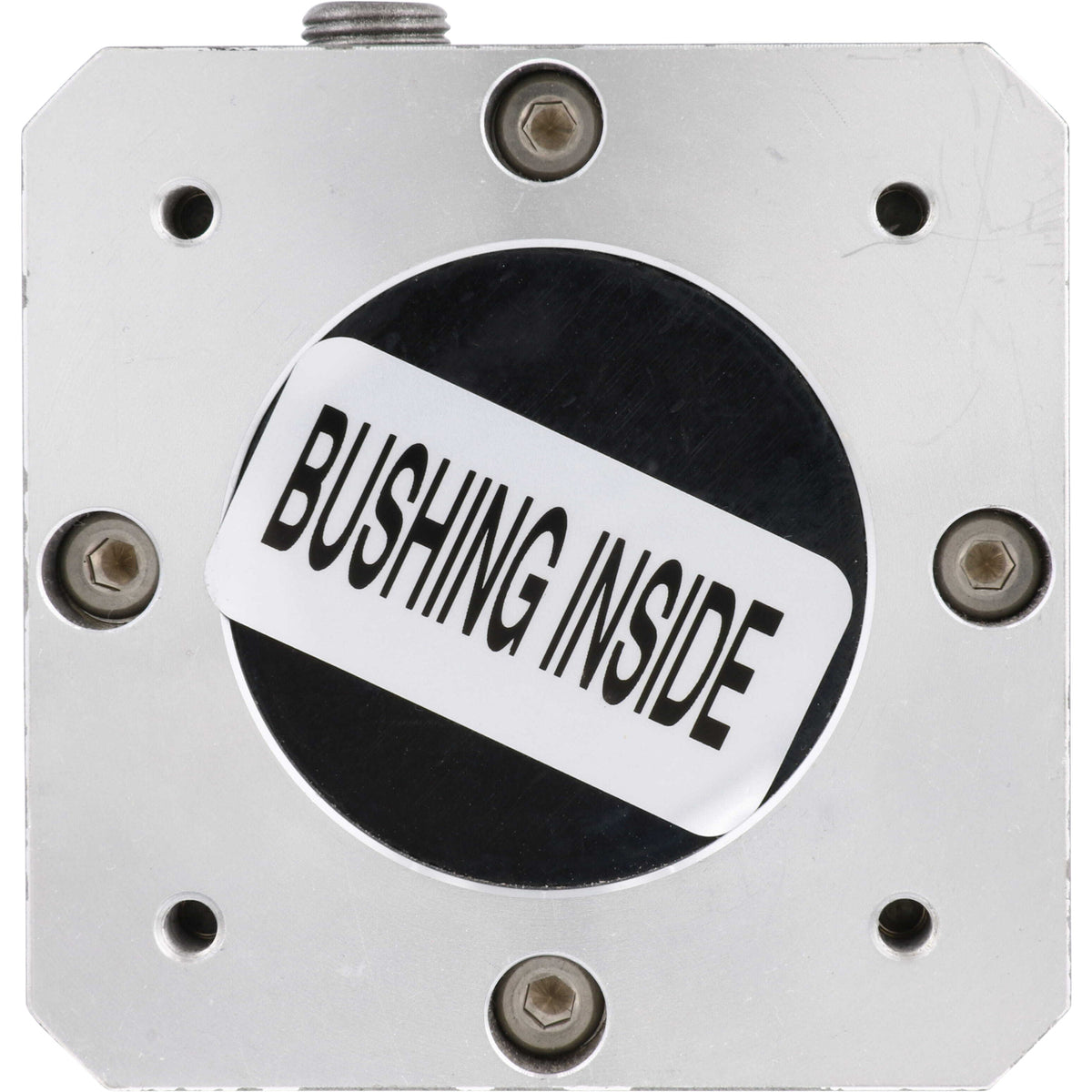

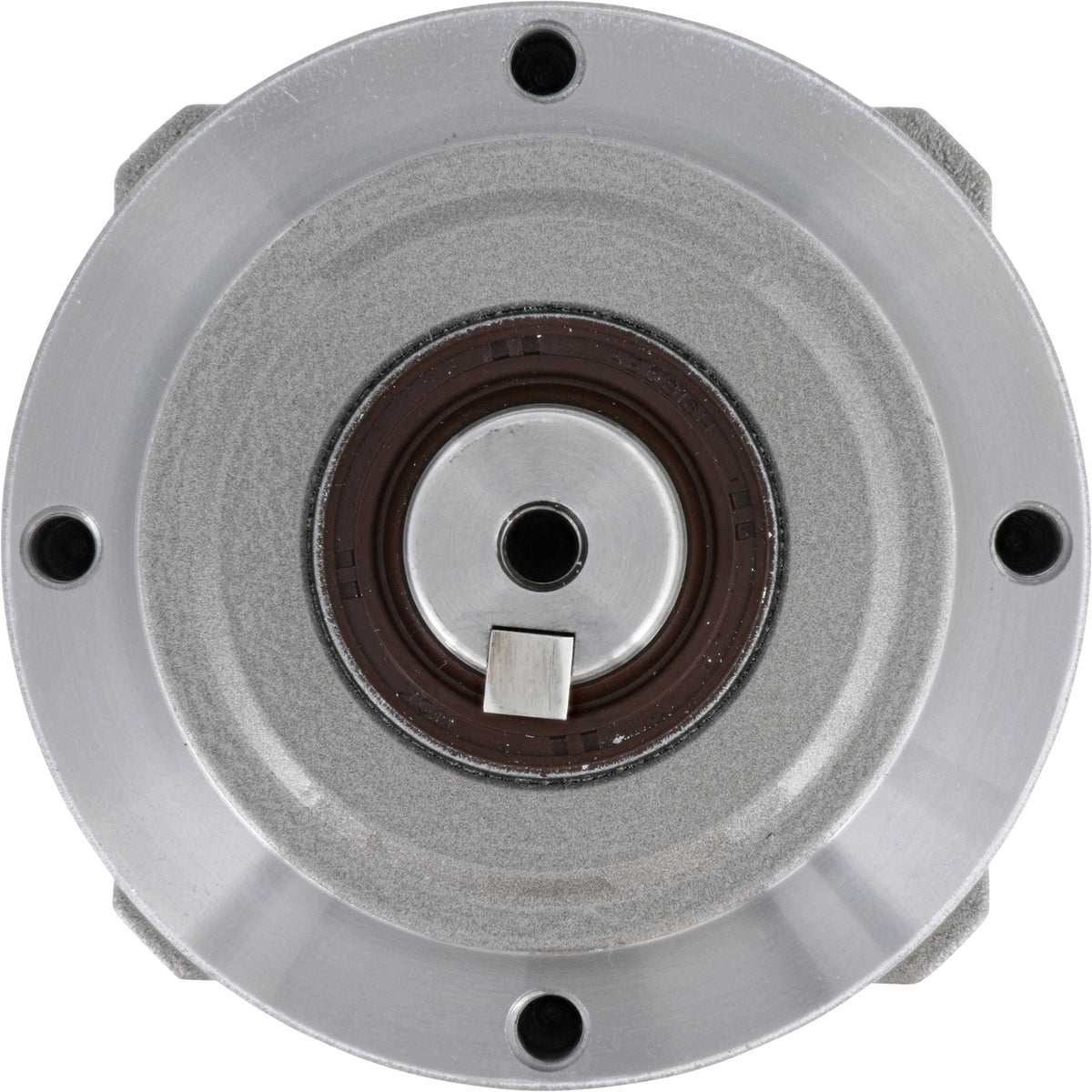

WG8/10 Star Wheel Gear Box

The Star Wheel Gear Box is found on all WG8/10 systems.

It connects to the servomotor and is used to put motion to the Star Wheel Assembly.

There are two Star Wheel Gear Boxes per machine; one per lane.

Features:

  • Housing Coatings and Surface Finishes: FDA White Epoxy, Steel-It, Nickel Plating.
  • Ingress Protection: IP65 Protection available using special input seals, output seals and sealants
  • Output Shaft Material: Stainless steel, including fasteners
  • Lubrication: NSF H1 Certified Food Grade Grease



Specs:

  • Nominal Output Torque: 43 Nm
  • Maximum Acceleration Torque: 66 Nm
  • Maximum Torque: 66 Nm
  • Emergency Stop Torque : 100 Nm
  • Nominal Input Speed : 4000 rpm
  • Maximum Input Speed : 8500 rpm
  • No Load Running Torque: 0.04 Nm
  • Maximum Radial Load: 1200 N
  • Maximum Axial Load: 1100 N
  • Torsional Rigidity: 3 Nm/arcmin
  • Noise Level: ≤ 66 dB [A]
  • Protection Class: IP65


Regular price $2,420.59
/
+ VAT Shipping calculated at checkout.

VRL-070B-25-K5-14BD9-A1

  • Hurry, only 1 item left!
