Coupler Nut O-ring
H0-00166
$1.43

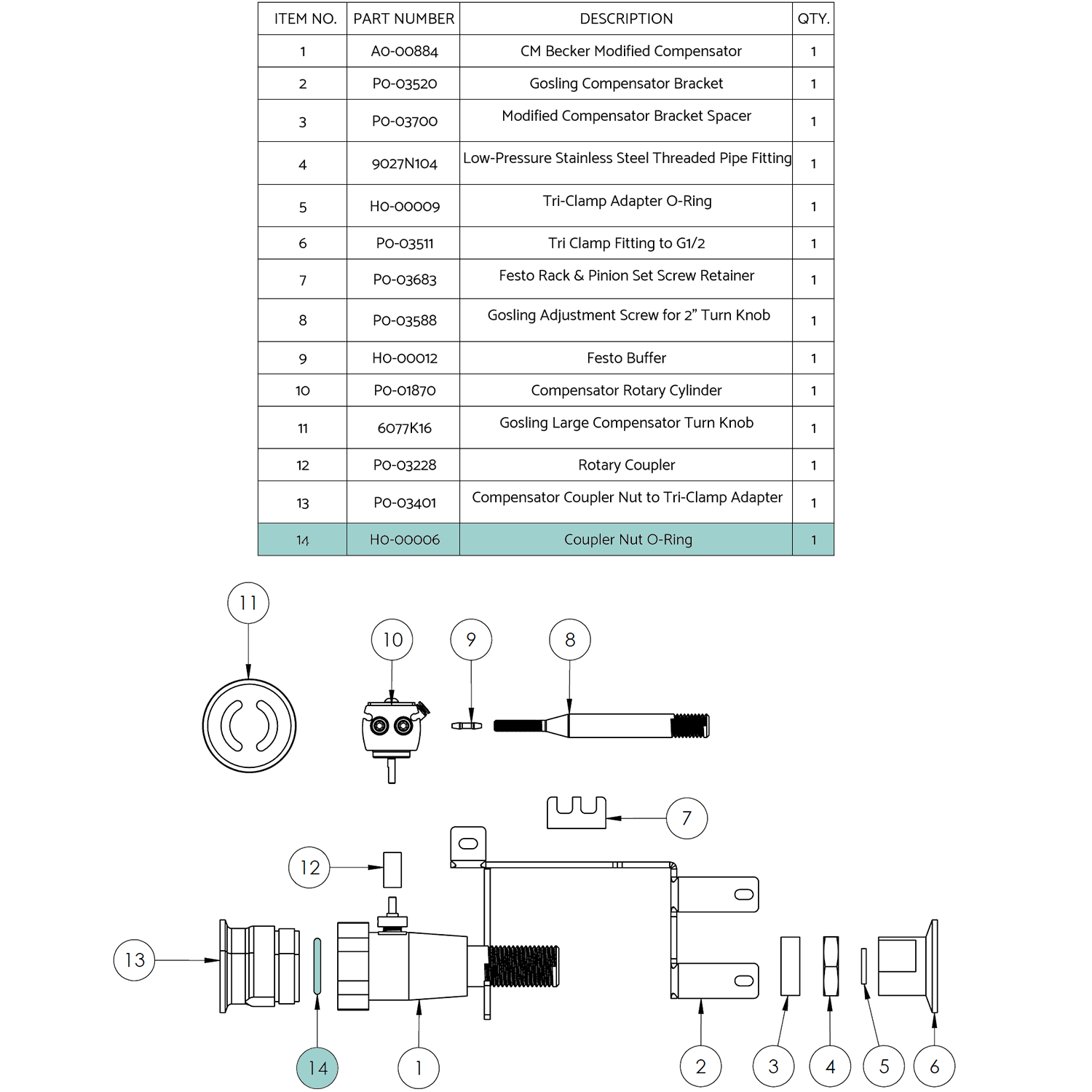

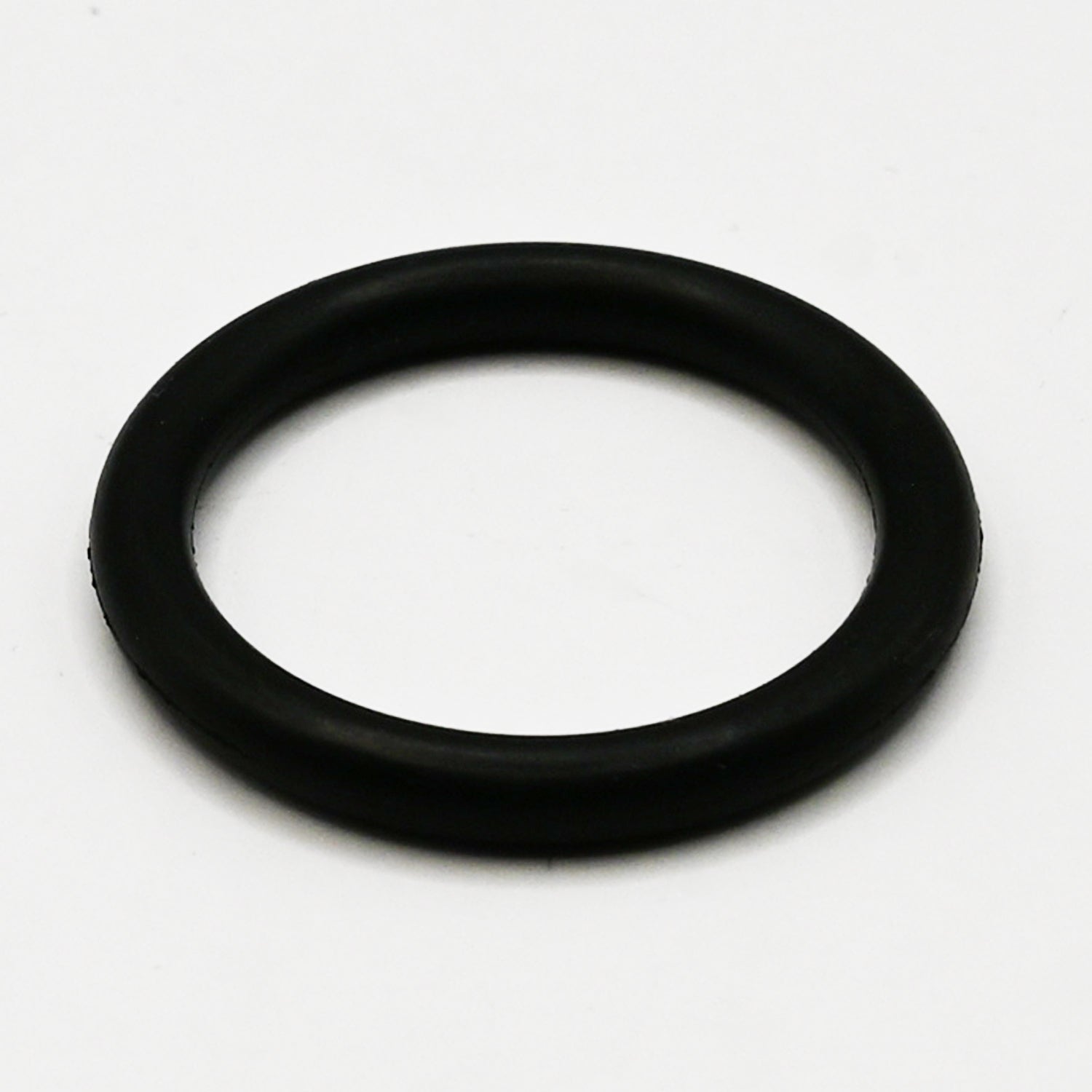

The Coupler Nut O-ring is used to create a seal between the the Compensator body and 1.5" Coupler Nut Adapter.
- This O-ring is considered a wear part and should be inspected on a monthly basis.
- There is one Coupler Nut O-ring per Compensator Valve assembly.
Specs:
- Material: Buna-N Rubber
- Cross Section Shape: Round
- ID: 0.921" (2.34cm)
- OD: 1.199" (3.05cm)
- Hardness: Durometer 70A (Medium)
- Temperature Range: -20° to 250° F (-28.9° to 121.1° C)
-
