    • Home / Products / Tri-Clamp Adapter O-ring

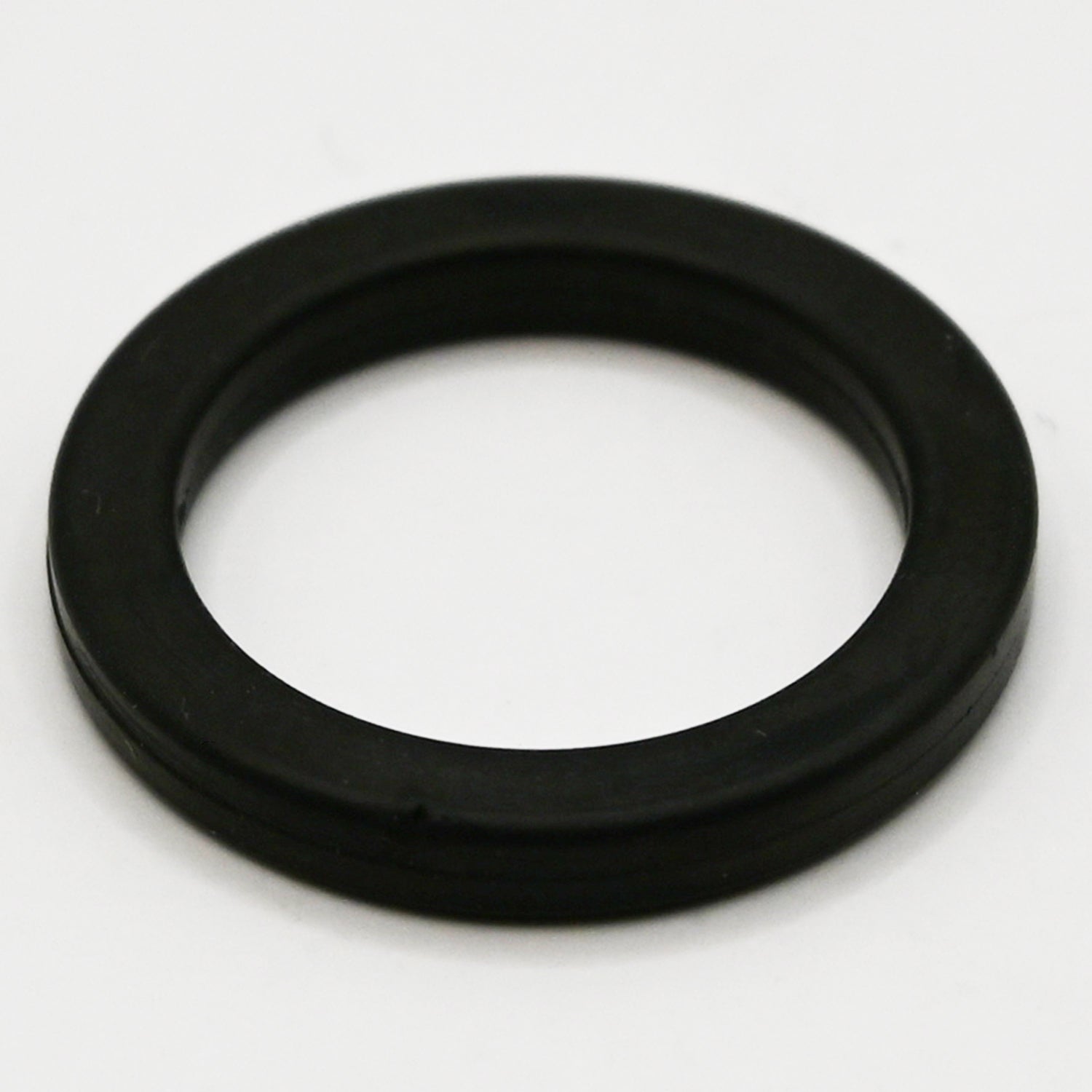

    Black rubber O-ring on white background.

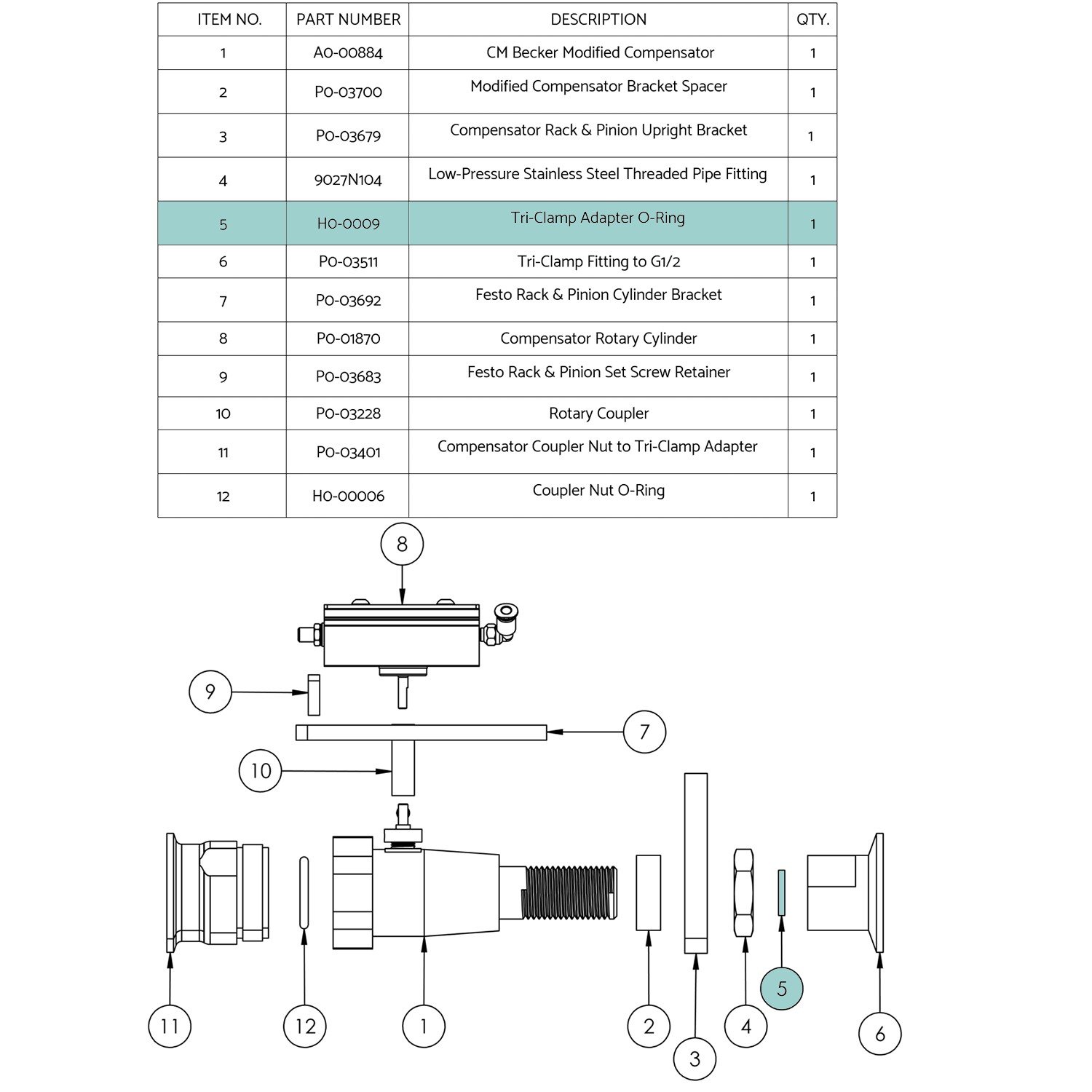

    Exploded view drawing of an assembly on white background with Tri-Clamp Adapter O-ring highlighted in aqua color.
    Black rubber O-ring on white background.
    Exploded view drawing of an assembly on white background with Tri-Clamp Adapter O-ring highlighted in aqua color.

    Tri-Clamp Adapter O-ring

    H0-00009

    $0.40
    Tri-Clamp Adapter O-rings are used to create a seal between the the threaded compensator shank and the 1.5" Tri-Clamp Adapter.

    • This O-ring is considered a wear part and should be inspected on a monthly basis.
    Specs:
    • Material: Buna-N Rubber
    • Cross Section Shape: Square
    • ID: 0.55" (1.4cm)
    • OD: 0.76" (1.93cm)
    • Hardness: Durometer 70A (Medium)
    • Temperature Range: -30° to 212° F (-34.4° to 100° C)
