    Home / Evolution Series / Pin O-ring

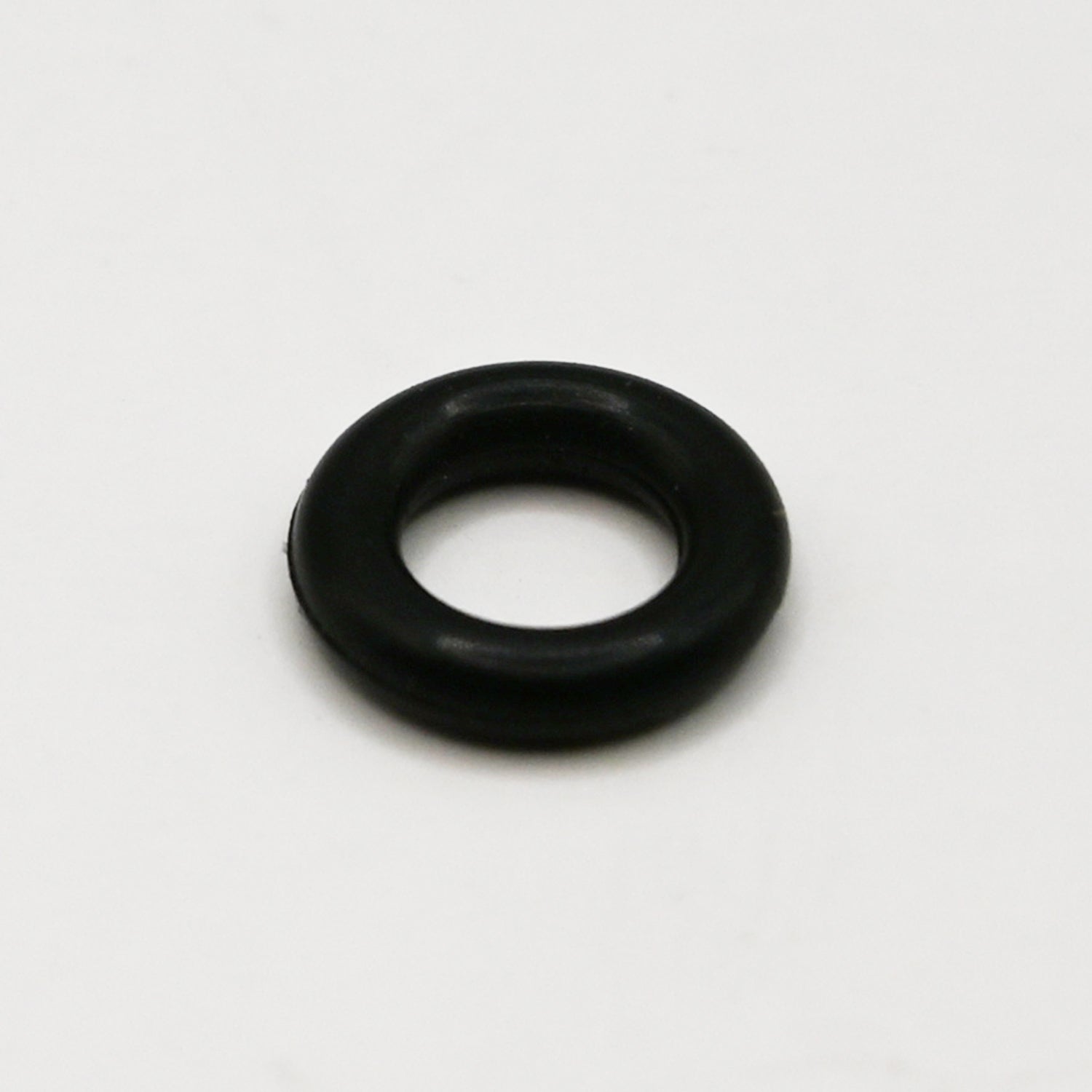

    Black rubber O-Ring on white background.

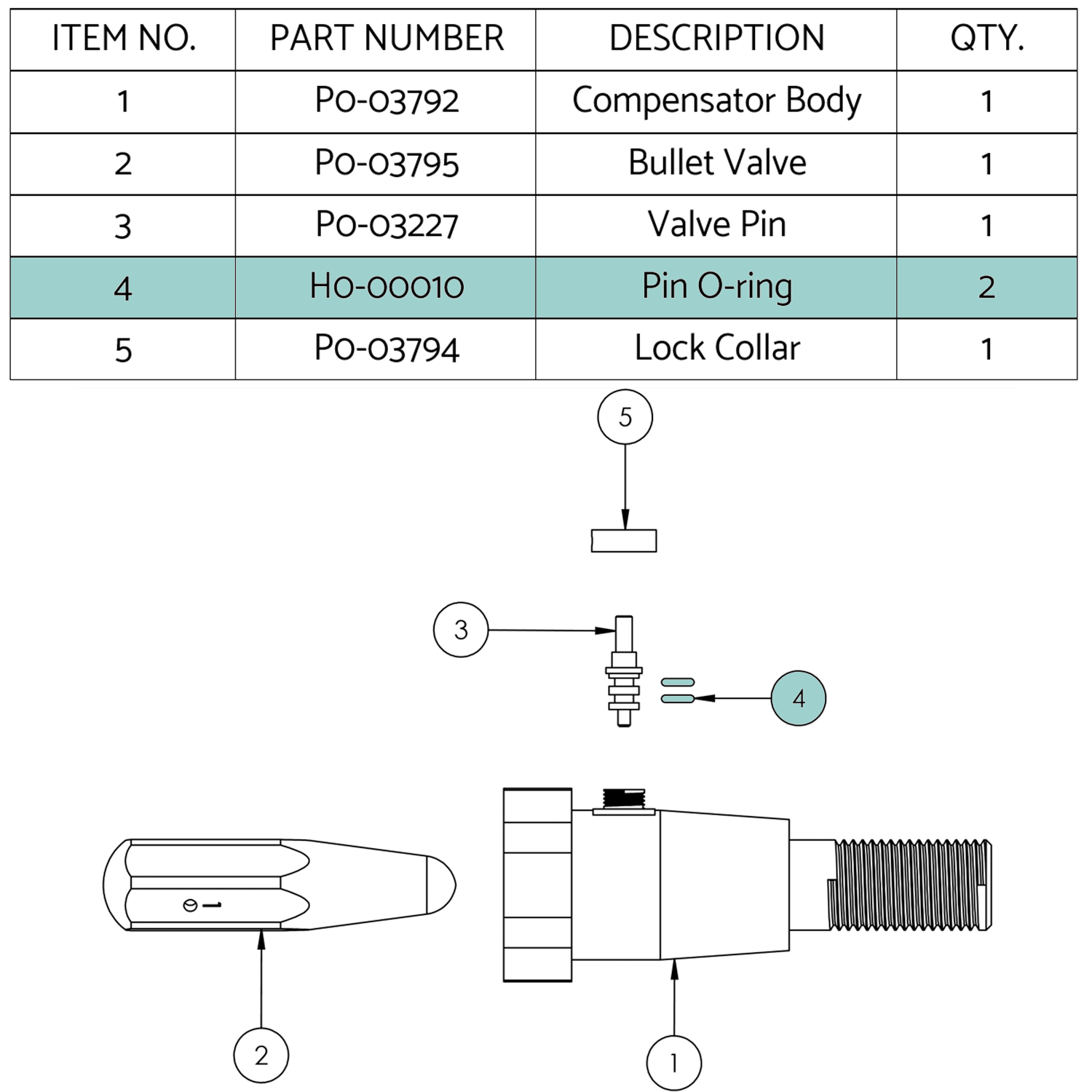

    Exploded view drawing of assembly on white background with the Pin O-ring highlighted in aqua color.
    Black rubber O-Ring on white background.
    Exploded view drawing of assembly on white background with the Pin O-ring highlighted in aqua color.

    Pin O-ring

    H0-00165

    $4.75
    The Pin O-rings are used with the Bullet Valve Pin and create a seal between the fluid path and compensator body.
    • These are considered a wear part and should be inspected and lubricated on a monthly basis.
    • WGF recommends replacement Pin O-rings be lightly lubricated with a food grade lubricant (petro gel) prior to installing.
    Specs:
    • Material: EDPM Rubber
    • Cross Section Shape: Round
    • ID: 0.176" (0.48cm)
    • OD: 0.316" (0.80cm)
    • Hardness: Durometer 70A (Medium)
    • Temperature Range: -70° to 250° F (-56.7° to 121.1° C)
    11 items left
