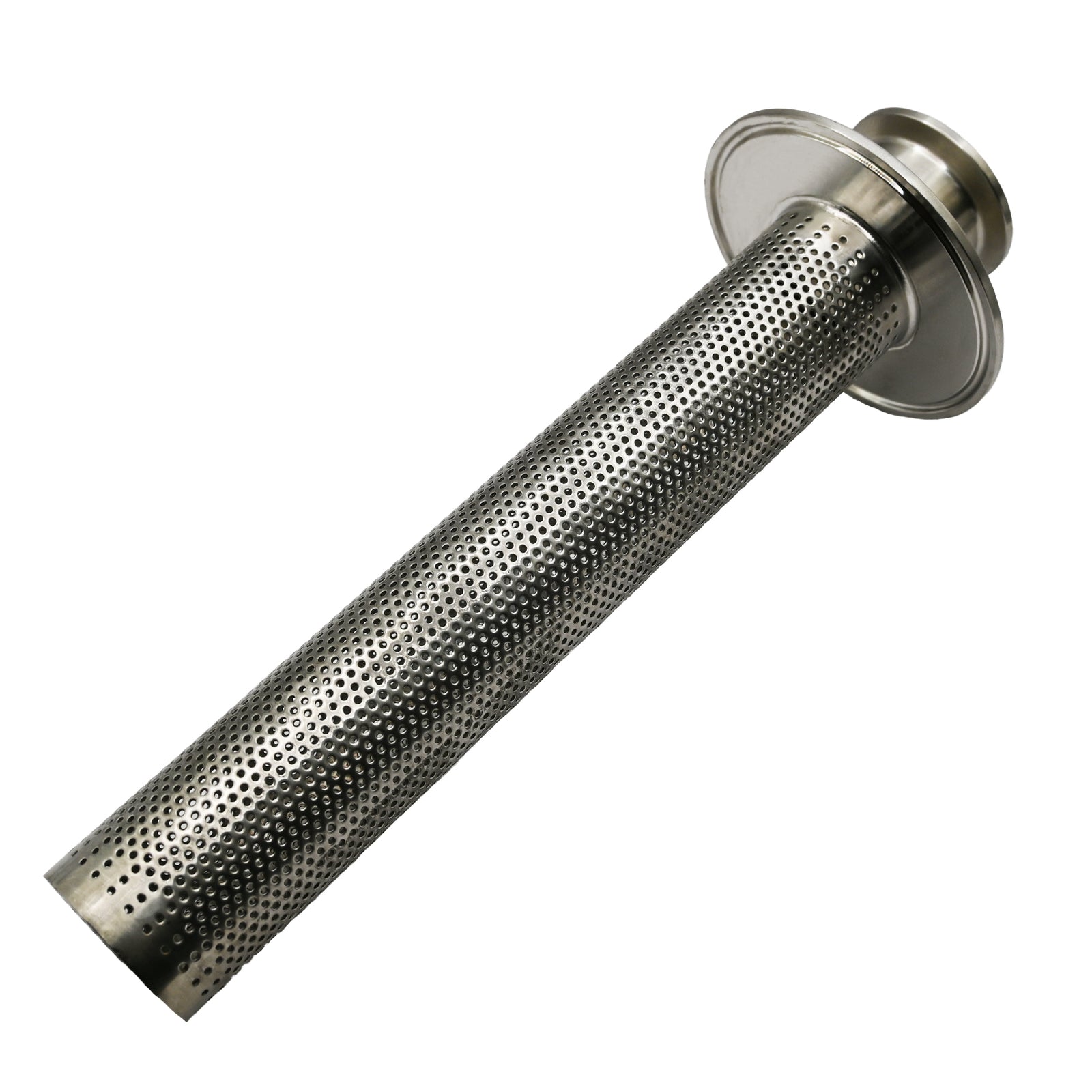

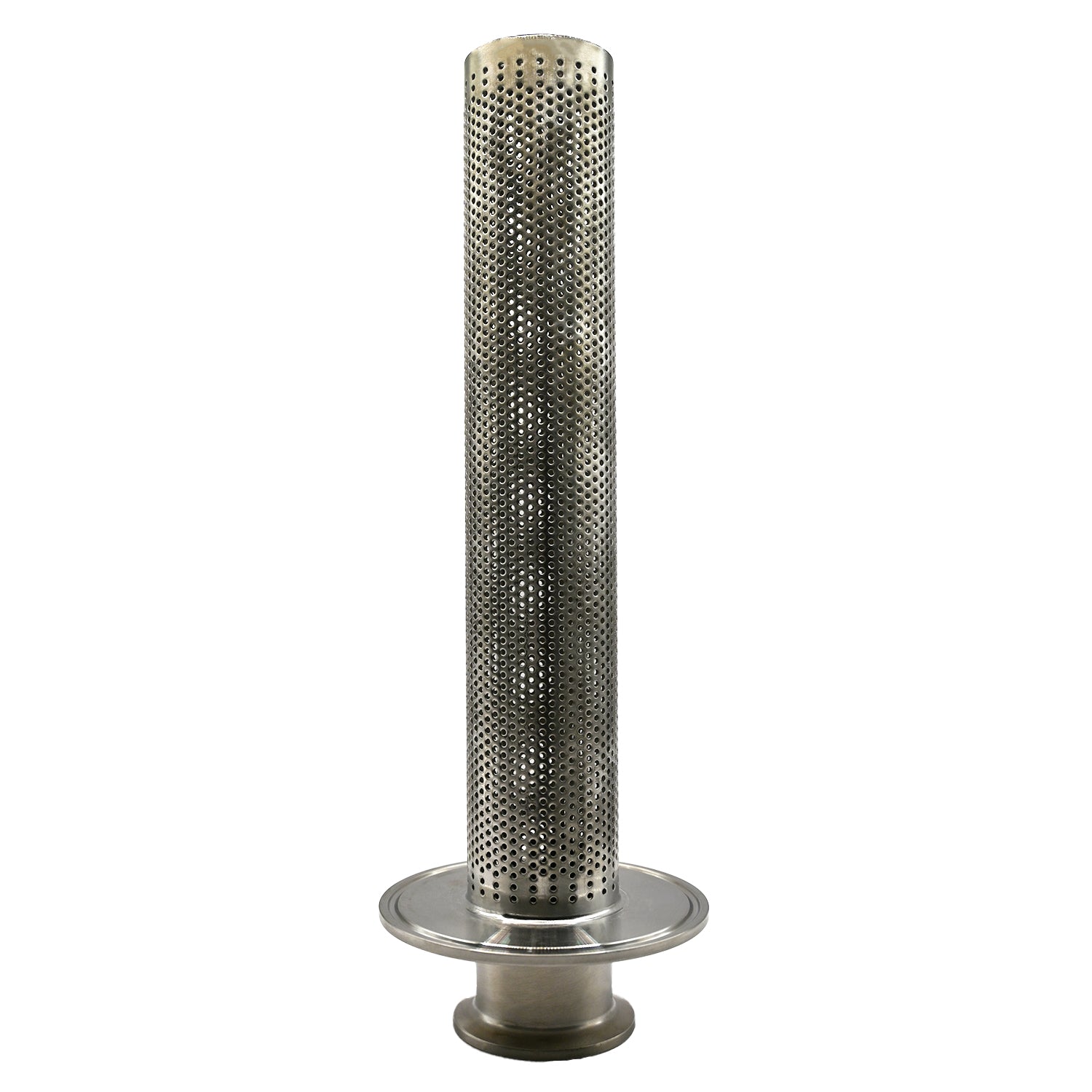

The Inline Strainer mounts inline between the brite tank and compensator valve(s) and is used to prevent larger particulate sizes from clogging the compensator's internal moving parts.
This design allows for a faster flow rate, won't clog as easily but will allow finer particulate through.
The Inline Strainer is 1.5" Tri Clamp compatible with a 3" OD body.

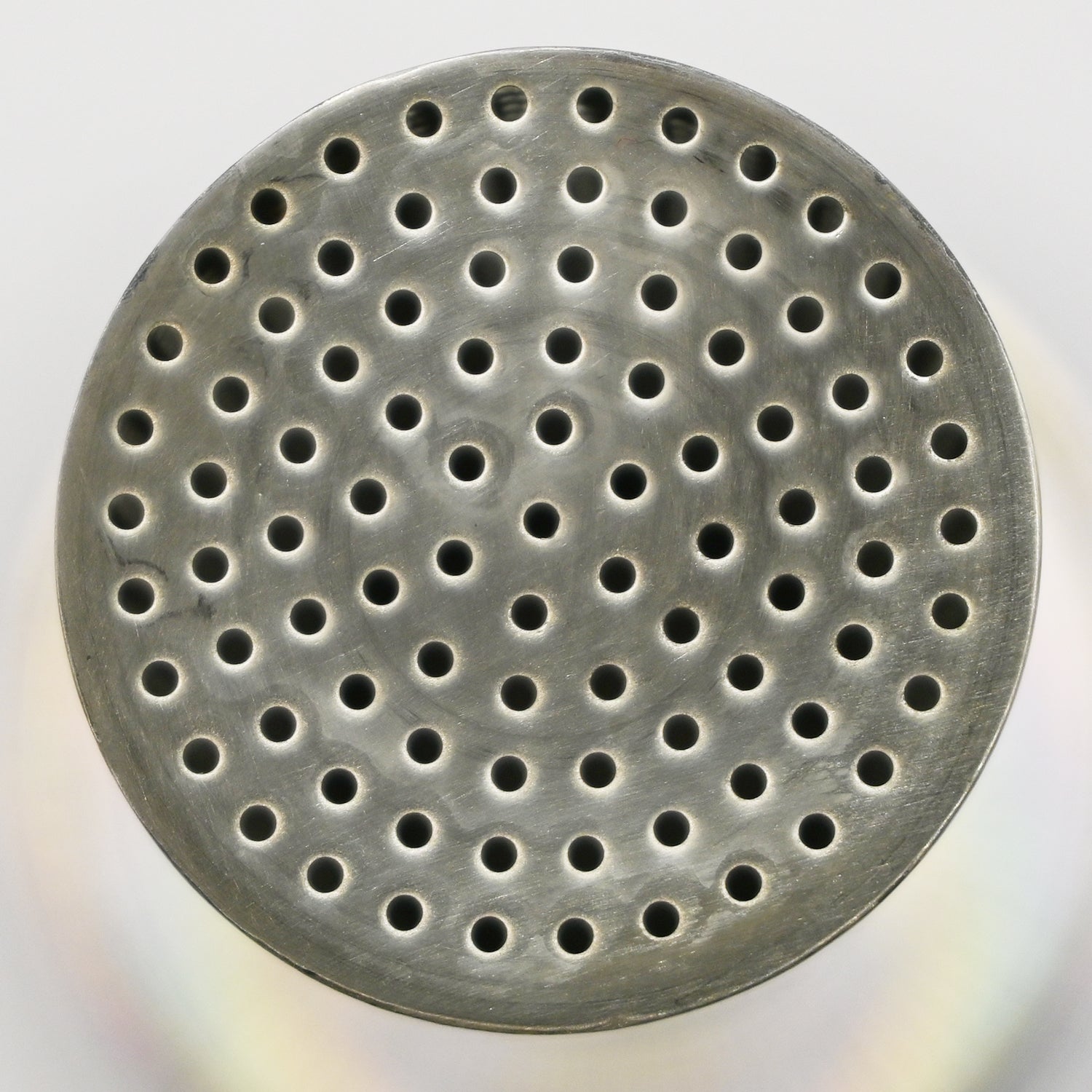

The rigid internal element is 1.625" in diameter X 9" long and has 5mm holes in it.
A replaceable stainless sock with 0.6mm mesh is included. NOTE: This assembly is to be used with a 0.6mm (600 micron) filter or smaller.
Specs:
-
Material: 304 Stainless Steel
-
Recommended Batch Size: 2.5 Gallons - 30 Gallons
- Flange to Flange Overall Length: 12.5"
- Liquid Capacity: 0.25 Gallon
- Rigid Element Hole Size: 5mm
- Included Filter Net Hole Size: 0.6mm (600 Micron)
-
Internal Rigid Element Length: 9"
-
Internal Rigid Element Diameter: 1.625"
-
Strainer Body Outside Diameter: 3"
-
Strainer Body Inside Diameter: 2.8125"
